Reliable Manta M8P By BTT 3D printer control board for Klipper, Mainsail, Rat Rig, Voron, CoreXY, and DIY printer electronics builds requiring 8 stepper motor slots and onboard SBC integration.
$119.99

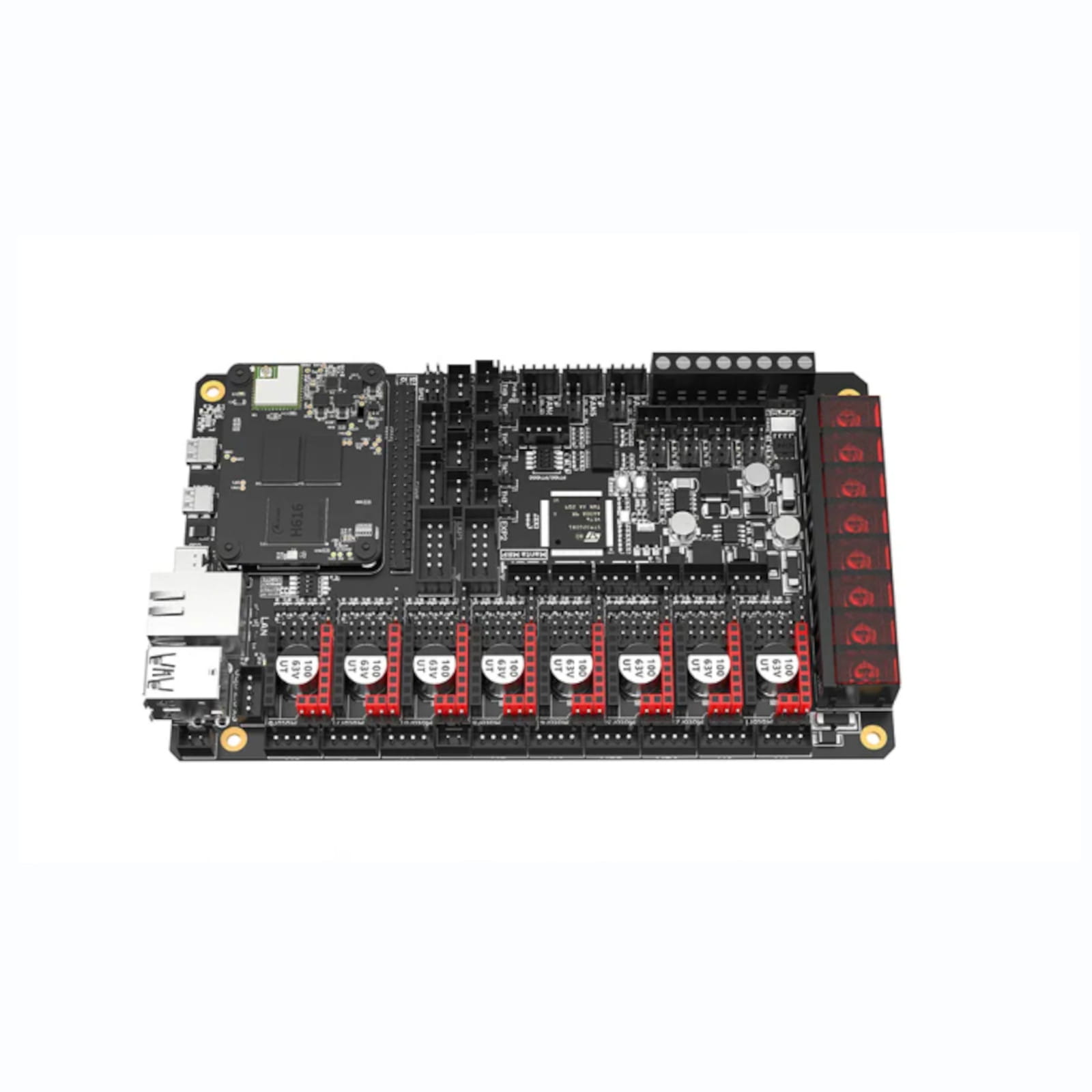

The Manta M8P By BTT is a feature-rich 3D printer control board designed for Klipper, Mainsail, Rat Rig, Voron, CoreXY, and DIY printer electronics builds. It is built around a stable 32-bit 64MHz ARM Cortex-M0+ STM32G0B1VET6 chip and includes a TPS5450-5A power chip for onboard power management.
Your current dnb3D product page lists the Manta M8P with 8 stepper motor slots, onboard single board computer integration, selectable 5V/12V/24V CNC fan voltage, circuit overload protection, USB-OTG or UART to USB, 3 USB-Host 2.0 ports, 2 Micro HDMI ports, multiple PWM fan outputs, an always-on fan, and an SoC fan port.
The Manta M8P control board includes 8 stepper motor slots, making it useful for advanced 3D printer builds that need more motion control capacity than smaller boards. This can support larger CoreXY machines, multi-driver setups, independent motor configurations, toolhead expansions, dual Z or quad gantry leveling-style layouts, and other feature-rich printer electronics designs depending on firmware and machine configuration.
One of the main advantages of the Manta M8P is onboard single board computer integration. The board can connect directly to the BIGTREETECH CB1 or compatible CM4-style module, allowing Klipper and Mainsail to run without requiring an external Raspberry Pi-style SBC. This can reduce wiring clutter, save space, and simplify electronics bay layout.
The Manta M8P is well suited for Klipper printer control. Your dnb3D product page notes that dnb3D runs Klipper on its 3D printer DIY kits using the PI4B/CB1 in conjunction with Manta M8P and/or Octopus V1.1 control boards. When paired with the CB1, the Manta M8P can act as an integrated printer electronics platform for modern Klipper-based machines.
The board includes selectable CNC fan voltage options for 5V, 12V, or 24V, plus multiple fan outputs. Your page lists 5 two-pin PWM fan outputs, 2 four-pin PWM fan outputs, 1 always-on fan, and 1 SoC fan. This gives builders flexibility for hotend fans, part cooling fans, electronics bay fans, controller cooling, and single board computer cooling depending on the printer wiring plan.
The Manta M8P includes 1 USB-OTG or UART-to-USB connection, 3 USB-Host 2.0 ports, and 2 Micro HDMI ports according to your product page. These connections can support Klipper setup, USB accessories, screen/display output, firmware access, and printer electronics integration depending on the CB1/CM4 module and build configuration.
The BIGTREETECH CB1 can connect directly to the Manta M8P to create a space-saving Klipper electronics setup. The BTT Pi4B Adapter is a separate option for builders who want the CB1 or CM4 to run as a Raspberry Pi 4B-style standalone single board computer instead. The CB1 Heat Sink PI4B is sold separately and can help with CB1 thermal management in compatible setups.
This product can be used as part of a BIGTREETECH Klipper electronics setup. Pair it with the BIGTREETECH CB1, BTT Pi4B Adapter, and CB1 Heat Sink PI4B depending on your printer build. These products are sold separately unless specifically listed as part of a bundle or kit.

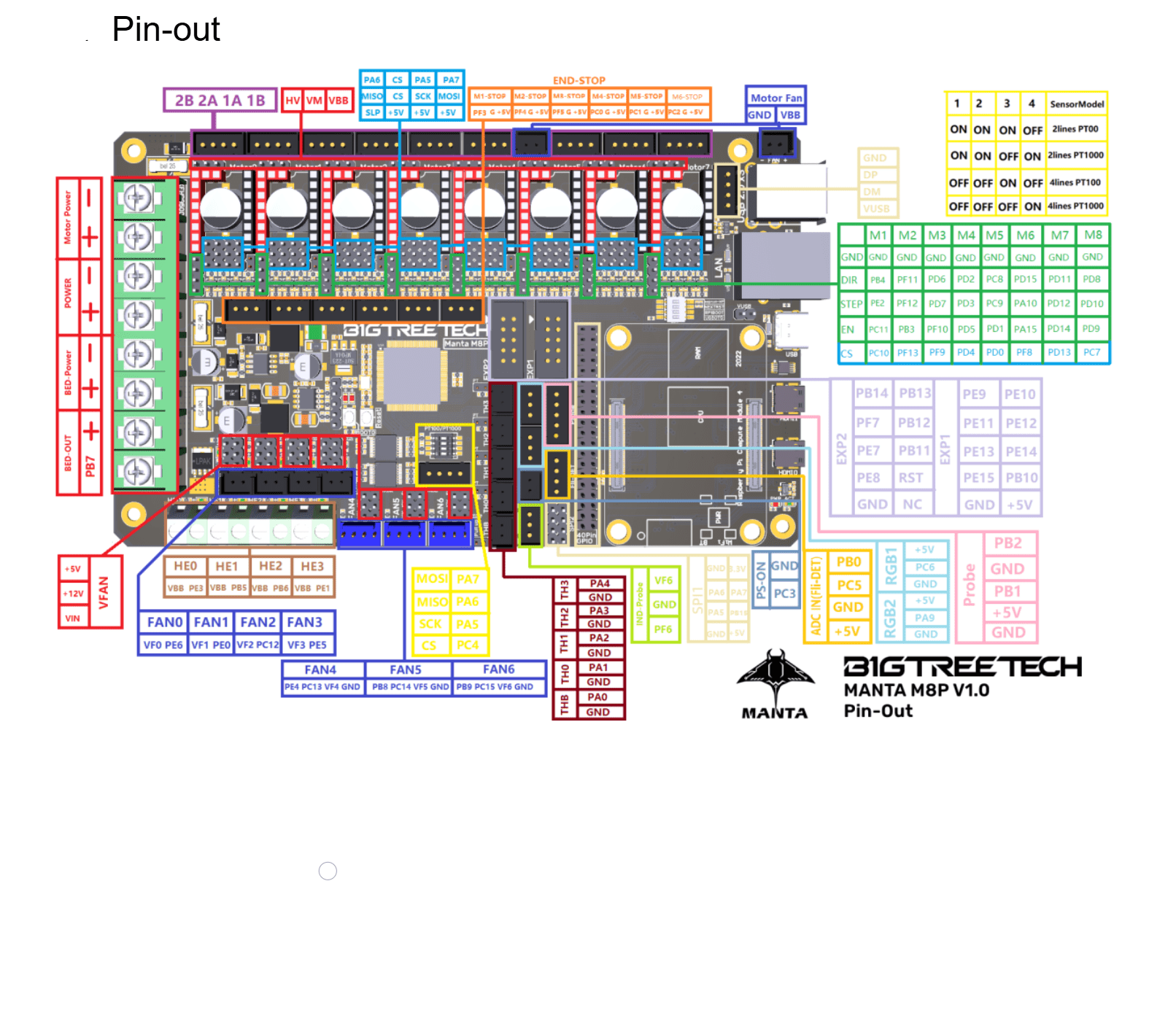

Product specifications and user documentation are available from BIGTREETECH. For official board files, firmware information, pinouts, and setup instructions, review the BIGTREETECH Manta M8P GitHub documentation before installation or flashing.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are building a Rat Rig, Voron, CoreXY printer, large-format machine, or custom Klipper electronics setup, the Manta M8P By BTT provides a powerful 8-stepper control board platform for advanced 3D printer builds.
The Manta M8P By BTT is an advanced 3D printer control board with 8 stepper motor slots, onboard CB1/CM4 single board computer integration, flexible fan control, and Klipper-ready electronics support.
| Product Type | 3D printer control board / motherboard |
|---|---|
| Model | Manta M8P By BTT |
| Main Controller | 32-bit 64MHz ARM Cortex-M0+ STM32G0B1VET6 chip |
| Power Chip | TPS5450-5A power chip |
| Stepper Motor Slots | 8 stepper motor slots |
| SBC Integration | Onboard single board computer integration for BIGTREETECH CB1 or compatible CM4-style setups |
| Klipper / Mainsail Support | Can run Klipper and Mainsail when paired with compatible CB1/CM4 compute module |
| External SBC Note | Can run without an external Raspberry Pi-style SBC when the CB1 is connected directly to the Manta M8P |
| Fan Voltage Selection | Selectable CNC fan voltage: 5V / 12V / 24V |
| Fan Outputs | 2-pin PWM fan x 5; 4-pin PWM fan x 2; always-on fan x 1; SoC fan x 1 |
| USB Connection | 1 USB-OTG or UART to USB |
| USB Host Ports | 3 USB-Host 2.0 ports |
| Video Output | Micro HDMI x 2 |
| Protection | Circuit overload protection |
| Common Printer Use | Rat Rig-style builds, Voron-style builds, CoreXY printers, large-format printers, Klipper machines, custom 3D printer electronics, and advanced DIY printer builds |
| Related Products | BIGTREETECH CB1, BTT Pi4B Adapter, CB1 Heat Sink PI4B |
| Sold Separately | CB1 module, CM4 module, Pi4B Adapter, heatsink, stepper drivers, wiring, fans, power supply, and accessories are sold separately unless otherwise stated. |
| SKU | DB-0559-6753 |
| Installation Warning | Confirm board version, power input, fan voltage jumpers, stepper driver compatibility, wiring polarity, firmware files, pinout, CB1/CM4 compatibility, and cooling before powering the board. |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
Before installing the Manta M8P By BTT, confirm the exact board version, official pinout, firmware files, driver compatibility, power input requirements, and wiring documentation. Control board revisions can vary, so always follow the documentation for your exact board.
Disconnect all power before installing the Manta M8P, stepper drivers, CB1 or CM4 module, fans, heaters, endstops, probes, motors, USB cables, HDMI cables, or other electronics. Never plug or unplug wiring while the board is powered unless the documentation specifically allows it.
This board supports selectable CNC fan voltage options for 5V, 12V, and 24V. Confirm the correct voltage before connecting fans. Incorrect fan voltage can damage fans, toolhead electronics, or the control board.
Install stepper drivers in the correct orientation and confirm driver type, jumper configuration, UART/SPI settings, motor current, cooling, and firmware configuration before powering the board. Incorrect driver installation can damage the board or drivers.
If using the BIGTREETECH CB1 or a compatible CM4 module directly on the Manta M8P, confirm module orientation, seating, heatsink clearance, firmware image, and cooling before applying power. The CB1 heatsink is sold separately.
Use firmware files and configuration examples intended for the Manta M8P and your exact printer setup. Incorrect pin assignments, heater settings, fan settings, thermistor types, or motor configurations can cause unreliable operation or hardware damage.
Confirm power supply voltage, input polarity, wire gauge, fuse protection, bed and hotend heater current, and terminal tightness before powering the printer. High-current printer wiring should be installed carefully and inspected regularly.
After installation, test power, communication, fans, endstops, probes, heaters, thermistors, motors, and Klipper/Mainsail access one step at a time. Do not start a full print until each subsystem has been verified safely.
Printer control boards, stepper drivers, power electronics, and compute modules generate heat. Use proper electronics bay airflow, fan placement, heatsinks, and cable management so the Manta M8P, drivers, CB1/CM4 module, and wiring stay within safe operating conditions.
Mount the board on proper standoffs and keep it away from loose screws, metal chips, conductive dust, filament strands, moisture, and uninsulated wiring. A small short circuit can permanently damage printer electronics.
