Reliable Volcano Brass Nozzles V6 for 1.75mm filament, E3D Volcano-style hotends, high-flow printing, draft parts, prototypes, and everyday 3D printer maintenance.
$2.95

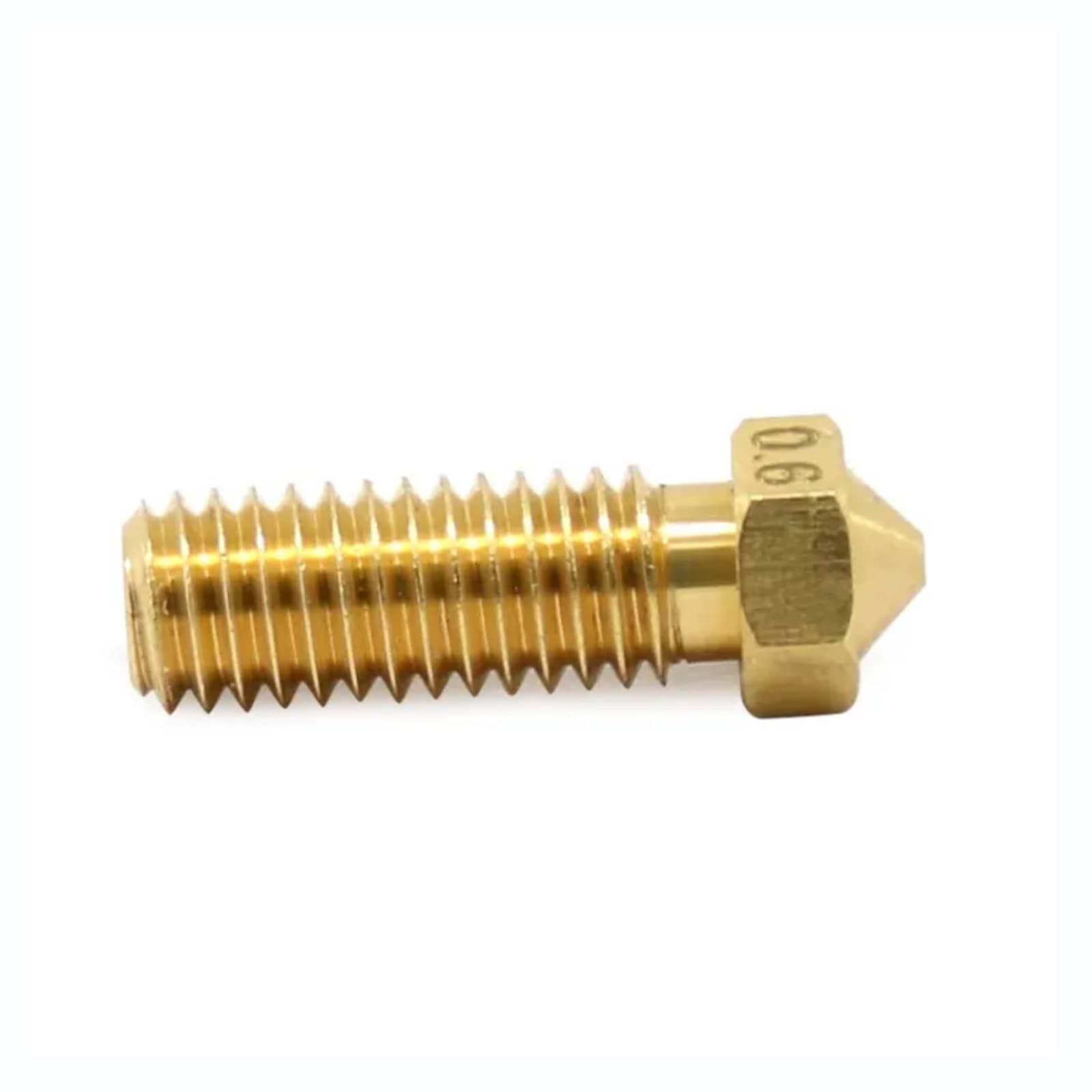

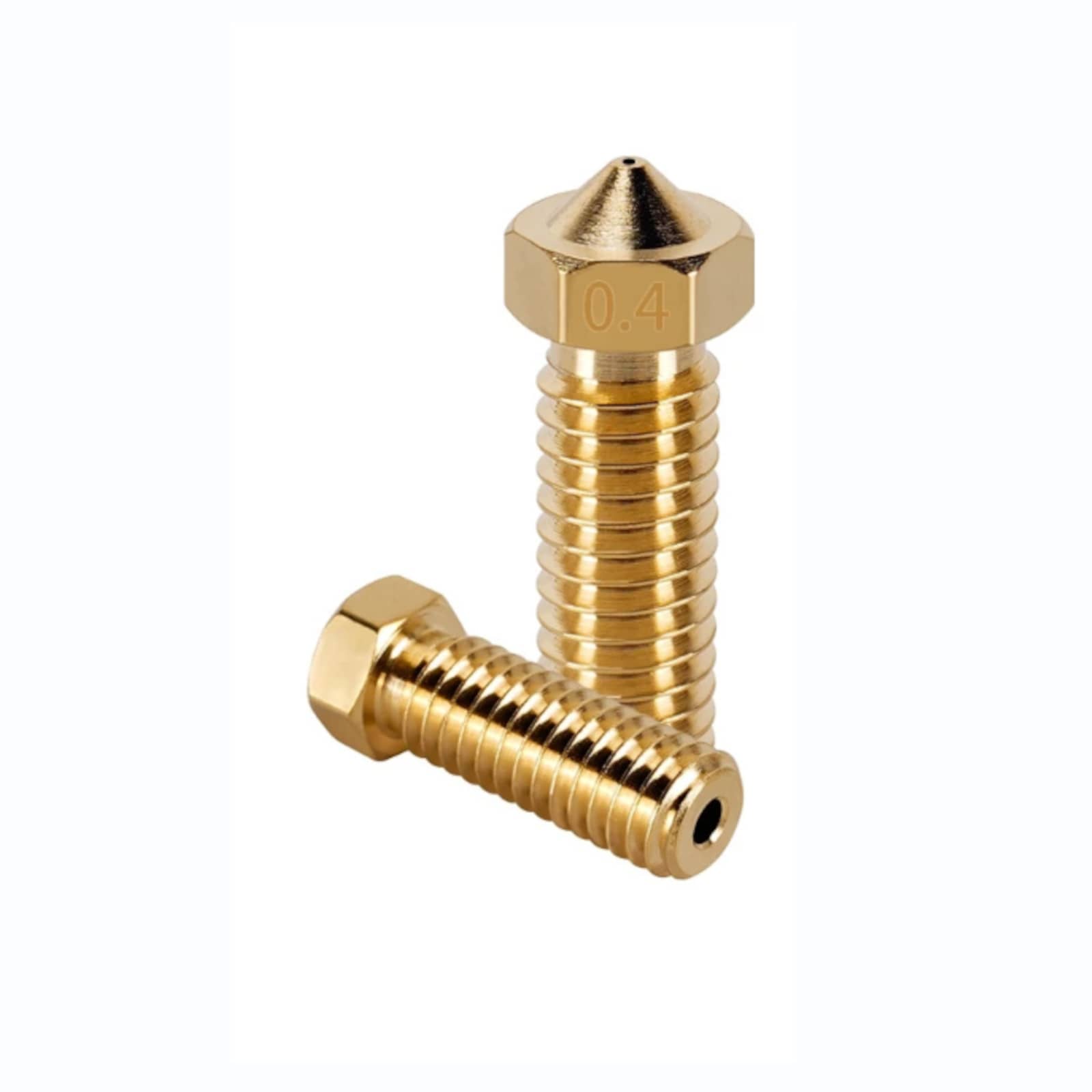

Volcano Brass Nozzles V6 are designed for compatible E3D Volcano-style hotends using 1.75mm filament. These brass nozzles are built for high-flow filament applications where a larger melt zone, faster material output, and improved print speed are important. They are a practical replacement or upgrade option for everyday 3D printing, draft parts, prototypes, larger prints, and general printer maintenance.
Your current dnb3D product page lists these nozzles in four size options: 0.2mm, 0.4mm, 0.6mm, and 0.8mm. This gives printer owners flexibility when choosing between fine detail, standard printing, and larger nozzle sizes for faster material flow. The page also notes that these nozzles are rated to a maximum temperature of 300°C and are designed to improve print quality and speed.
Volcano-style nozzles are longer than standard V6-style nozzles and are designed to support increased melt capacity. This makes them useful when printing larger parts, stronger functional pieces, thicker layers, or faster draft profiles. When paired with a compatible Volcano-style hotend, the larger melt zone can help maintain more consistent extrusion during higher-flow printing.
These Volcano Brass Nozzles are intended for compatible E3D Volcano-style hotends using 1.75mm filament. Before ordering or installing, confirm your hotend type, thread compatibility, nozzle length, heater block style, and filament diameter. A nozzle that does not match the hotend can cause leaks, poor heat transfer, clogging, or heater block damage.
The 0.2mm option is useful for finer detail and smaller features, but it usually requires slower printing. The 0.4mm size is a common everyday choice. The 0.6mm and 0.8mm sizes can help increase flow and reduce print time for larger functional parts, brackets, jigs, fixtures, prototypes, and draft prints. When changing nozzle size, update slicer settings such as nozzle diameter, line width, layer height, flow rate, speed, and temperature.
Brass nozzles offer good thermal conductivity and are a popular choice for everyday 3D printing. They are best suited for non-abrasive materials such as PLA, ABS, PETG, TPU, and similar standard filaments. For abrasive materials such as carbon fiber-filled, glow-in-the-dark, metal-filled, glass-filled, or heavily filled composites, use a hardened or wear-resistant nozzle instead.
These Volcano Brass Nozzles are listed as rated to a maximum temperature of 300°C. Always stay within the safe operating limits of your hotend, thermistor, heater cartridge, nozzle material, and filament. Printing near the upper end of any component’s temperature range should be done carefully and only with a properly configured printer.
For related components, browse the 3D Printer Parts category or the Nozzles category. These nozzles can be paired with heater blocks, silicone socks, heat breaks, thermistors, extruders, and other 3D printer maintenance hardware from dnb3D.
Volcano-style nozzles are designed for higher-flow printing applications where larger melt zones, larger nozzle sizes, and increased material output are useful. For compatibility, dimensions, hot tightening, and nozzle care information, see the E3D Volcano nozzle technical reference.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are replacing a worn nozzle, increasing print flow, tuning a larger nozzle profile, or stocking spare 3D printer maintenance parts, these Volcano Brass Nozzles V6 provide a reliable everyday option for compatible 1.75mm Volcano-style hotends.
Volcano Brass Nozzles V6 are brass high-flow nozzles for compatible E3D Volcano-style 3D printer hotends using 1.75mm filament.
| Product Type | 3D printer nozzle / Volcano-style brass nozzle |
|---|---|
| Nozzle Style | Volcano V6-style high-flow nozzle |
| Filament Diameter | 1.75mm |
| Material | Brass |
| Available Nozzle Sizes | 0.2mm, 0.4mm, 0.6mm, 0.8mm |
| Compatible Hotends | Compatible E3D Volcano-style hotends |
| Maximum Temperature Rating | 300°C |
| Melt Zone | Large melt zone for high-flow and higher-speed printing applications |
| Recommended Filaments | PLA, ABS, PETG, TPU, and similar non-abrasive 1.75mm filaments |
| Not Recommended For | Abrasive filaments such as carbon fiber-filled, glow-in-the-dark, metal-filled, glass-filled, or heavily filled composite materials |
| Common Applications | High-flow 3D printing, everyday printing, draft parts, prototype parts, larger nozzle profiles, printer maintenance, PLA, ABS, PETG, and TPU printing |
| SKU | DB-0716-7606 |
| Installation Warning | Confirm Volcano hotend compatibility before installation. Install carefully to avoid cross-threading, hotend leaks, or heater block damage. |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
Before installing Volcano Brass Nozzles V6, confirm that your printer uses a compatible E3D Volcano-style hotend for 1.75mm filament. Check hotend type, thread compatibility, nozzle length, heater block style, and filament diameter before installation.
Start the nozzle by hand whenever possible. If the nozzle does not thread in smoothly, stop and check alignment. Cross-threading can damage the brass nozzle, heater block, or hotend assembly.
Many hotends require the nozzle to be tightened at printing temperature so the nozzle seals correctly against the heat break. Follow your printer or hotend manufacturer’s procedure. Use controlled torque and avoid over-tightening, as brass is softer than steel and can be damaged by excessive force.
Brass Volcano nozzles are best suited for PLA, ABS, PETG, TPU, and similar non-abrasive filaments. Avoid using them with abrasive materials such as carbon fiber-filled, glow-in-the-dark, metal-filled, glass-filled, or heavily filled composites. Abrasive filaments can wear the brass nozzle opening and reduce print quality.
When switching between 0.2mm, 0.4mm, 0.6mm, and 0.8mm nozzle sizes, update your slicer settings. Check nozzle diameter, line width, layer height, flow rate, speed, temperature, and retraction settings. A larger Volcano nozzle may also require higher flow tuning depending on material and printer capability.
These nozzles are listed with a maximum temperature rating of 300°C. Do not exceed the safe limits of your nozzle, hotend, thermistor, heater cartridge, heat break, PTFE path if present, or filament. High-temperature printing should only be done on a properly configured printer.
Keep the nozzle tip free from burnt filament, debris, and residue. Use appropriate cleaning methods for your filament and printer. Do not scrape aggressively with hard tools, as brass can be scratched or damaged.
If prints show inconsistent extrusion, poor surface finish, under-extrusion, blobs, stringing, or dimensional issues after tuning, inspect the nozzle for wear or clogging. Replacing a worn nozzle is often faster and more reliable than trying to recover a badly damaged one.
