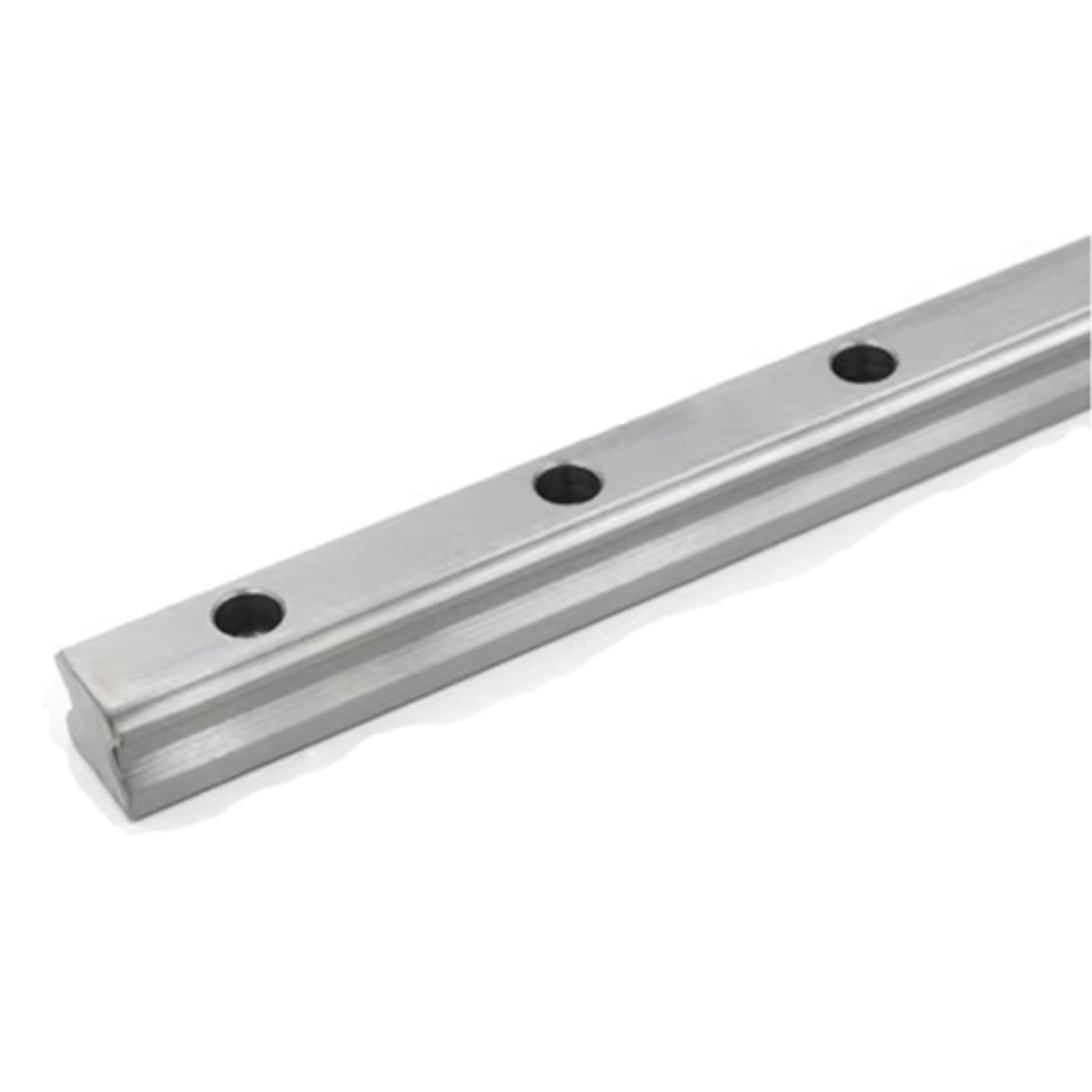

Essential MGN12 Linear Guide Rail for smooth, accurate linear motion in 3D printers, CNC machines, robotics, linear tables, and custom mechanical builds.
$0.75 per cm
The MGN12 Linear Guide Rail is a compact, high-precision motion rail designed for 3D printers, CNC machines, robotics, linear tables, automation projects, and custom mechanical assemblies. With a 12mm rail width and 8mm rail height, this miniature guide rail provides a strong balance of rigidity, smooth travel, and space-saving design for builders who need accurate movement without oversized hardware.
This rail is supplied in custom lengths, making it a practical choice for machine upgrades, printer rebuilds, compact CNC axes, gantry systems, laser engraver conversions, and DIY motion platforms. Instead of forcing your design around fixed rail lengths, you can order the MGN12 rail by length and build around your actual frame, carriage, or axis requirement.
MGN-style miniature guide rails are commonly used where smooth, repeatable linear motion is required. When paired with a compatible MGN12C or MGN12H guide block, the rail supports controlled travel for print heads, beds, Z-axis assemblies, small CNC carriages, camera sliders, measuring fixtures, and precision positioning systems. The compact form factor makes the MGN12 size especially useful for builds where standard round rods or larger rail systems take up too much space.
This MGN12 Linear Guide Rail features hardened chrome steel construction with a chrome finish for dependable wear resistance and clean motion performance. For best results, keep the rail clean, lightly lubricated where appropriate, and protected from abrasive dust, chips, and debris. A properly mounted rail helps reduce binding, uneven carriage movement, and premature block wear.
For best fit and motion quality, pair this rail with a matching MGN12 guide block from the same supplier whenever possible. This helps reduce compatibility issues between the rail profile and bearing block preload. You can also browse related motion parts in the Linear Guide Rail and Blocks category, including Linear MGN Guide Blocks and Linear Rail MGN12C Blocks.
Miniature MGN-style guideways are commonly used because their compact rail-and-block design provides smooth linear motion, good rigidity, and support for loads from multiple directions. For additional engineering context on linear guideway systems, see the official HIWIN linear guideway reference.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are repairing a printer, building a CNC axis, or upgrading a custom motion platform, this MGN12 Linear Guide Rail gives you a clean, practical foundation for accurate linear travel.
| Product Type | Miniature linear guide rail |
|---|---|
| Profile Series | MGN12 / 12mm miniature linear rail series |
| Rail Width | 12mm |
| Rail Height | 8mm |
| Length | Custom length, ordered by centimetre |
| Material | Hardened chrome steel |
| Finish | Chrome / polished steel appearance |
| Compatible Blocks | MGN12C and MGN12H style guide blocks, subject to rail/block compatibility |
| Common Applications | 3D printers, CNC machines, robotics, linear tables, measuring fixtures, automation projects, and mechanical slides |
| Rail Mounting Fastener | Typically M3 socket head screws, depending on rail hole pattern and mounting surface |
| Suggested M3 Fastener Torque | 0.6–0.8 N·m / 5.3–7.1 in-lbs. Start low and increase only as needed. |
| Assembly Warning | Do not over-tighten. Excess torque can distort the rail, deform soft mounting surfaces, or cause binding. |
| Recommended Mounting Surface | Flat aluminum extrusion, machined plate, steel frame, or other rigid aligned structure |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
For smooth motion and long service life, keep the MGN12 Linear Guide Rail free from dust, chips, abrasive debris, and dried lubricant. Wipe the rail with a clean lint-free cloth before installation and after heavy use. If the rail is used near CNC chips, sawdust, filament dust, or shop debris, inspect it regularly and clean the running surfaces before contamination reaches the guide block.
Linear rails perform best when mounted to a flat and stable surface such as aluminum extrusion, machined plate, or a properly aligned machine frame. Do not force the rail to conform to a twisted or uneven surface. A rail that is mounted out of alignment can cause tight spots, carriage binding, increased bearing wear, and inconsistent motion.
Use reasonable torque when fastening the rail. For typical M3 rail mounting screws, a practical assembly range is approximately 0.6–0.8 N·m or 5.3–7.1 in-lbs. Start at the lower end, check rail alignment, then tighten evenly in sequence. Over-tightening can distort the rail or deform softer aluminum mounting surfaces.
Use a light machine oil or suitable linear guide lubricant when required by your application. Avoid thick grease unless your build specifically calls for it, as excessive lubricant can attract dust and debris. After lubrication, move the block through the full travel length to distribute lubricant evenly.
For best results, purchase the guide rail and bearing block from the same supplier whenever possible, especially when using non-brand-name rail systems. Matching the rail and block helps reduce preload mismatch, rough travel, or inconsistent fit.
Every order is hand-inspected before shipping. dnb3D precision-ships motion components across Canada from our Ontario facility, helping builders, makers, and machine owners receive clean, usable parts ready for careful installation.
