Essential MGN12C Linear Rail Block for RatRig V-Core 3 300, 400, 500 and similar DIY 3D printer motion builds using compatible MGN12 linear rails.
Price range: $48.99 through $58.99
The MGN12C Linear Rail Block is a compact precision motion carriage designed for compatible MGN12 linear guide rails. This block is especially useful for RatRig V-Core 3 300, 400, and 500 style builds, as well as similar DIY 3D printer projects that use MGN12 rail-based motion systems. If you are replacing a worn carriage, completing a printer build, or stocking spare motion parts, the MGN12C block gives you a practical, compact option for smooth linear travel.
The C-style carriage is shorter than the H-style version, making it useful where space is limited or where the printer design specifically calls for a compact MGN12 carriage. This makes the MGN12C Linear Rail Block a strong choice for motion assemblies where a full-length H block may be unnecessary or where the original printer design was built around the smaller carriage format.
This guide block is made for use with compatible MGN12 linear guide rails. MGN blocks must be matched to the correct rail profile, so an MGN12C block should only be used with an MGN12 rail. Do not force the block onto a different rail size, as this can damage the bearing path, cause rough travel, or make the motion system unusable.
Many RatRig V-Core 3 style printer builds use MGN12 rail assemblies as part of the motion system. This MGN12C Linear Rail Block is well suited for builders working on RatRig V-Core 3 300, 400, and 500 size printers, as well as similar CoreXY, DIY, and custom-format 3D printer builds. It can be used for replacement, repair, upgrade, or spare-part inventory depending on your rail setup.
The MGN12C block provides a compact carriage footprint for controlled linear movement. Compared with an MGN12H block, the C-style version is shorter, helping reduce space requirements while still providing a stable bearing carriage for compatible rail systems. This can be helpful for printer gantries, compact toolhead motion, bed support systems, and other machine designs where every millimetre matters.
Although this product is especially relevant for RatRig V-Core 3 style builds, it can also be used in other DIY 3D printers, compact CNC machines, robotics projects, camera sliders, measuring fixtures, automation projects, and custom mechanical slides. A properly installed MGN12C block can help improve motion consistency, reduce wobble, and support smoother travel compared with basic sliding hardware or unsupported rods.
For best motion quality, pair this block with a compatible MGN12 linear guide rail. Whenever possible, purchase the guide block and rail from the same supplier to reduce tolerance mismatch, preload issues, or rough travel between mixed-brand rail systems. You can pair this block with the MGN12 Linear Guide Rail or browse related parts in the Linear Guide Rail and Blocks category.
MGN-style miniature linear guideways are commonly used where compact size, stiffness, and smooth controlled movement are needed. For additional engineering context on linear guideway systems, see the official HIWIN linear guideway reference.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are maintaining a RatRig V-Core 3, building a similar DIY 3D printer, or upgrading a custom motion platform, this MGN12C Linear Rail Block gives your project a compact and reliable carriage option for accurate linear movement.

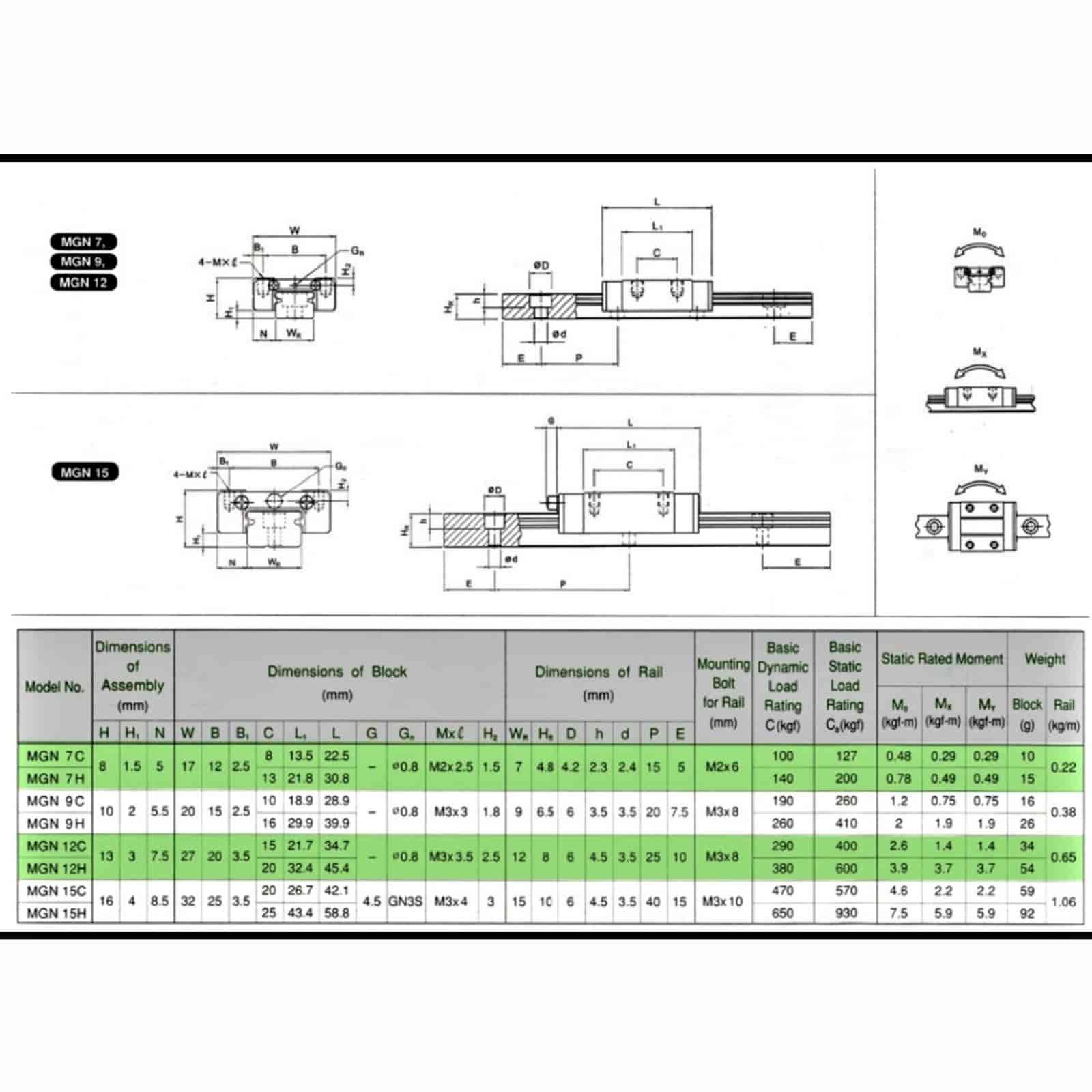

(Click to Enlarge)
The MGN12C block is a compact carriage designed for compatible MGN12 linear guide rails. Always confirm the rail profile and printer requirements before installation.
| Product Type | Linear rail guide block / motion carriage |
|---|---|
| Block Series | MGN12C |
| Rail Compatibility | MGN12 linear guide rail |
| Block Style | C-style compact carriage |
| Block Width | 27 mm |
| Block Length | 34.7 mm |
| Block Height | 10 mm |
| Mounting Hole Spacing | 20 mm center-to-center |
| Common Printer Fitment | RatRig V-Core 3 300, 400, 500 and similar DIY 3D printer builds |
| Common Applications | 3D printers, CoreXY motion systems, compact CNC, robotics, camera sliders, mechanical slides, and automation projects |
| Material | Hardened chrome steel |
| Finish | Chrome / polished steel appearance |
| Mounting Hole Size | M3 |
| Suggested M3 Fastener Torque | 0.6–0.8 N·m / 5.3–7.1 in-lbs. Start low and increase only as needed. |
| Installation Note | Use only with compatible MGN12 rail. Do not force onto MGN9, MGN15, or mismatched rail profiles. |
| Recommended Pairing | Best used with a matching MGN12 rail from the same supplier whenever possible |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
The MGN12C Linear Rail Block is designed for compatible MGN12 linear guide rails. Before installation, confirm that your rail is an MGN12 profile and that the carriage style matches your printer or machine design. Do not force the block onto a mismatched rail size, as this may damage the bearing path or cause permanent rough motion.

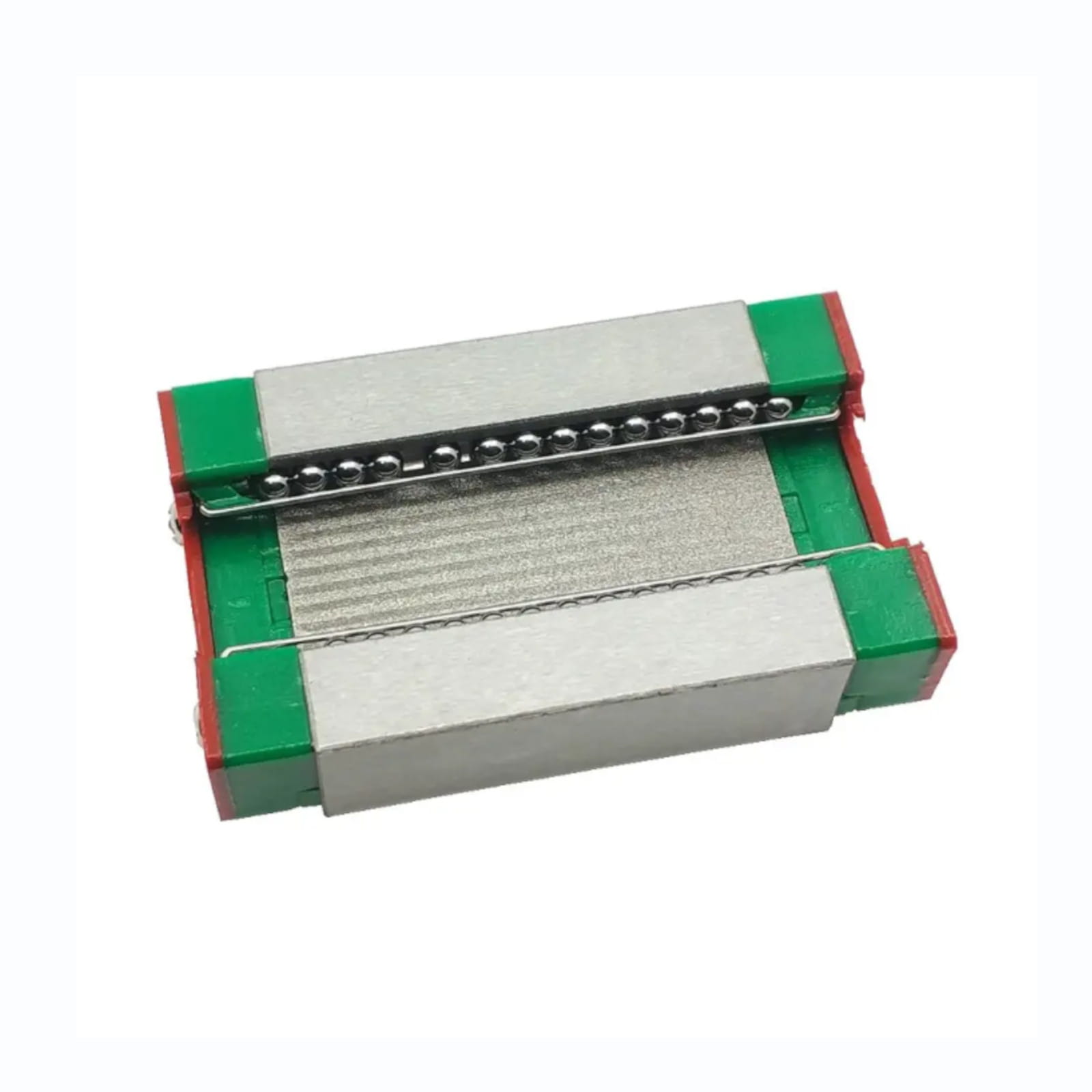

MGN guide blocks contain small recirculating steel balls. Some blocks include a retainer, but care is still required when handling the carriage. If the block must be removed from the rail, slide it carefully onto a temporary transfer rail or guide whenever possible. Avoid letting the block come off the rail uncontrolled.
For smooth motion and long service life, keep the block and rail free from dust, chips, filament particles, abrasive debris, and dried lubricant. Wipe exposed rail surfaces with a clean lint-free cloth. If the printer or machine operates in a dusty shop, enclosure, or CNC area, inspect the rail regularly so contamination does not reach the bearings.
Use a light machine oil or suitable linear guide lubricant when required by your application. Avoid excessive lubricant, especially in dusty environments, because heavy buildup can attract debris. After lubrication, move the block through the full rail travel to distribute lubricant evenly across the bearing path.
The guide block can only move as smoothly as the rail system allows. Mount the rail to a flat, rigid, and properly aligned surface before final tightening. Misalignment, uneven mounting surfaces, or over-tightened rail screws can create tight spots, rough travel, premature wear, or inconsistent motion.
For typical M3 mounting screws, a practical assembly torque range is approximately 0.6–0.8 N·m or 5.3–7.1 in-lbs. Start low, tighten evenly, and increase only as needed. Over-tightening can distort the mounting surface, affect rail alignment, or create binding in the guide block.
