Essential LM8UU Linear Ball Bearing for 8mm Smooth Rod Motion
The LM8UU Linear Ball Bearing is a compact linear motion bearing designed for smooth travel on compatible 8mm smooth rods. With an 8mm inner diameter, 15mm outer diameter, and 24mm overall length, this standard-size LM8UU bearing is one of the most common linear bearings used in 3D printers, CNC projects, robotics, camera sliders, mechanical slides, linear tables, and DIY motion systems.
This bearing is commonly used where low-friction linear movement is required along a round shaft. The compact body makes the LM8UU Linear Ball Bearing useful for printer repairs, replacement parts, prototype machines, light-duty motion carriages, and custom 8mm rod-based assemblies. It is also a popular bearing size for many Prusa-style and i3-style 3D printer motion systems.
Designed for 8mm Smooth Rods
The LM8UU bearing is made for use with compatible 8mm smooth rods or precision linear shafts. Proper shaft sizing, straightness, and surface finish are important for smooth operation. A bent, scratched, dirty, rusty, or undersized rod can cause rough movement, excess noise, binding, or premature bearing wear. For best results, use clean, straight, hardened smooth rods designed for linear bearing applications.
Compact Bearing for 3D Printers and Motion Builds

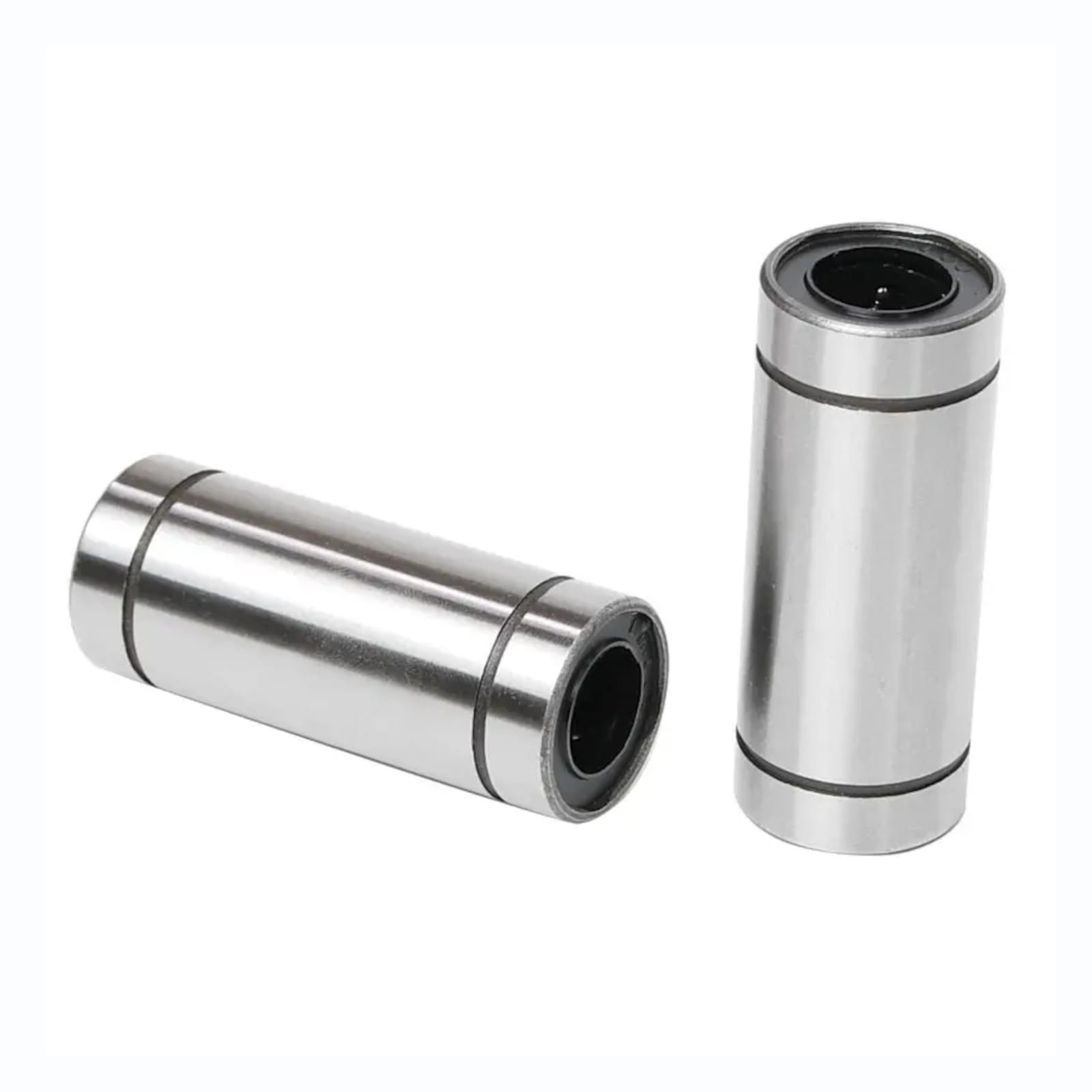

The LM8UU is shorter than the extended LM8LUU version, making it ideal when the design needs a compact linear bearing instead of a longer support body. This can be helpful in printer axes, tight carriage assemblies, lightweight slides, electronics fixtures, camera sliders, robotics mechanisms, and compact mechanical motion systems where space and weight matter.
Sealed Linear Motion Bearing
The LM8UU Linear Ball Bearing includes sealed ends to help reduce contamination from dust, debris, filament particles, and shop residue. The seals help protect the internal recirculating ball path, but the bearing should still be kept clean and lightly lubricated when needed. Clean rods, proper alignment, and careful installation will help extend bearing life and improve motion quality.
Useful for 3D Printers, CNC, Robotics, and DIY Motion Systems
This bearing is suitable for 3D printer motion systems, Prusa-style builds, compact CNC projects, camera sliders, robotics mechanisms, linear tables, 2-axis tables, 3-axis tables, automation projects, and custom mechanical slides. It is especially useful in builds where 8mm smooth rod motion is already part of the design and a compact linear bearing is required.
Pair with Related Linear Motion Parts

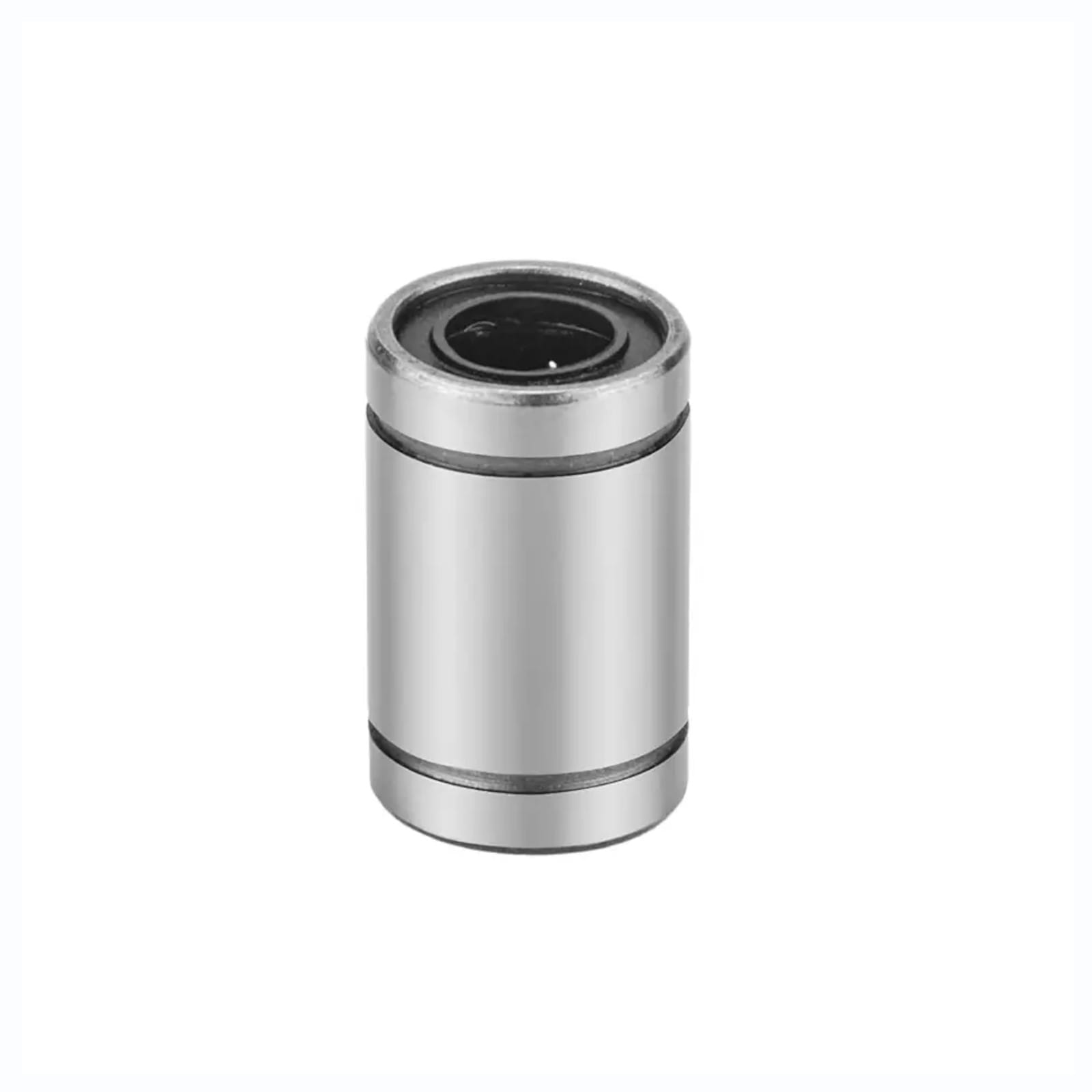

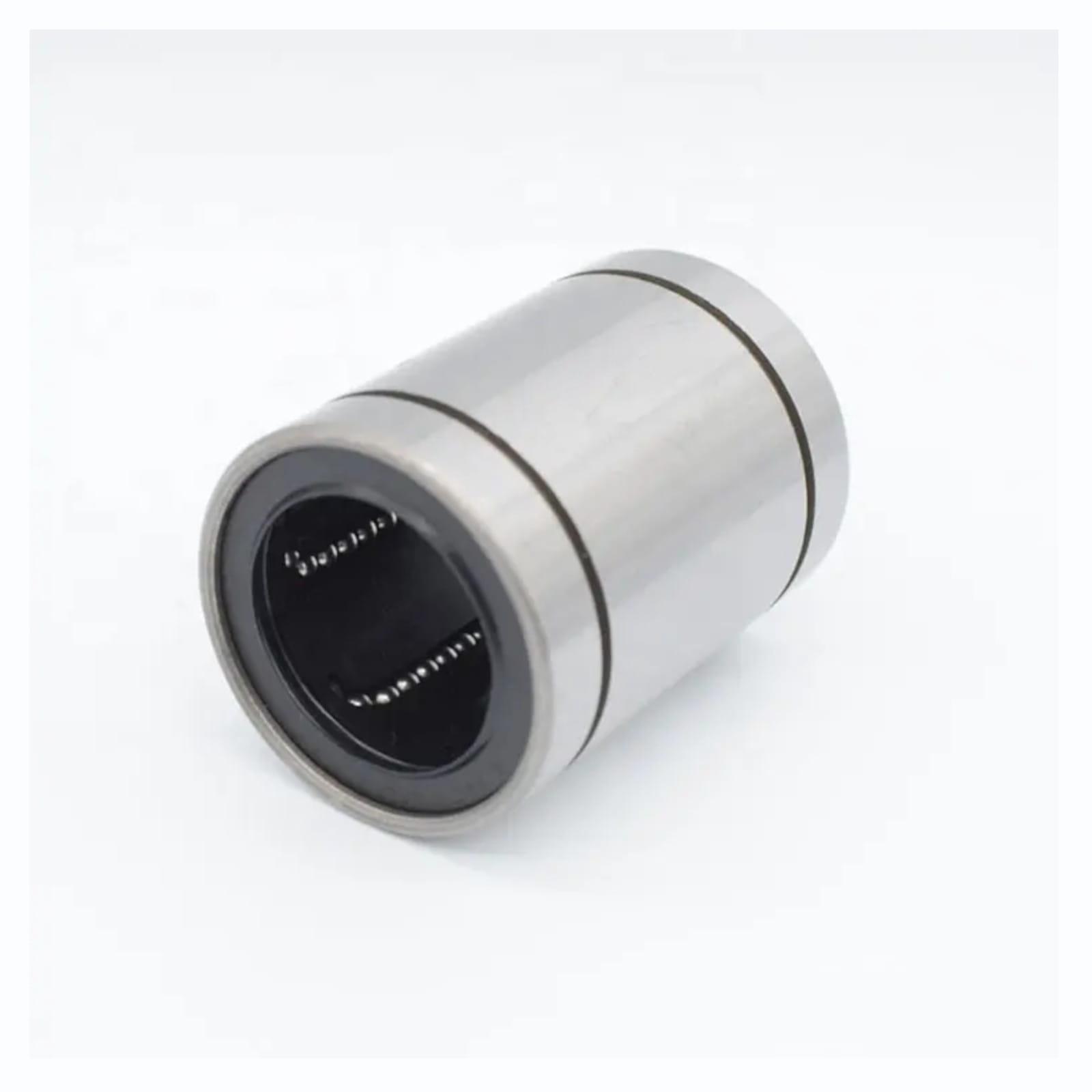

For related motion components, browse the Linear Guide Rail and Blocks category. You may also want to compare this bearing with related products such as LM8LUU Linear Ball Bearing, LM6UU Linear Ball Bearing, and LM6LUU Linear Ball Bearing.
Technical Reference
LM-style linear ball bearings are commonly used with round shafts to create smooth, low-friction linear motion systems. For additional dimensional reference, see this LM8UU linear bearing reference from Prusa.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are repairing a 3D printer, building a compact slide, or stocking spare motion components, this LM8UU Linear Ball Bearing provides a simple and reliable option for 8mm smooth rod motion systems.
Specifications
LM8UU Linear Ball Bearing Specifications
The LM8UU Linear Ball Bearing is a compact linear motion bearing designed for use with compatible 8mm smooth rods and precision shafting.
| Product Type | Linear ball bearing / linear motion bushing |
|---|
| Bearing Series | LM8UU |
|---|
| Shaft Compatibility | 8mm smooth rod / 8mm linear shaft |
|---|
| Inner Diameter | 8mm |
|---|
| Outer Diameter | 15mm |
|---|
| Overall Length | 24mm |
|---|
| Body Style | Standard compact linear bearing |
|---|
| Material | Hardened chrome steel / bearing steel |
|---|
| Finish | Chrome / polished steel appearance |
|---|
| Seal Style | Double sealed / shielded ends |
|---|
| Common Applications | 3D printers, Prusa-style builds, i3-style printers, compact CNC machines, robotics, camera sliders, mechanical slides, 2-axis tables, 3-axis tables, automation projects, and linear tables |
|---|
| Related Long Bearing | LM8LUU Linear Ball Bearing |
|---|
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
|---|
Installation & Care
Installation, Handling & Care
Use with Clean 8mm Smooth Rods
The LM8UU Linear Ball Bearing is designed for compatible 8mm smooth rods or linear shafts. Before installation, inspect the rod for scratches, dents, bends, rust, or debris. Damaged or dirty rods can create rough motion, noise, binding, or premature bearing wear.
Do Not Force the Bearing
Do not hammer, clamp, crush, or force the bearing into place. Linear ball bearings contain recirculating steel balls and internal raceways that can be damaged by impact, uneven pressure, or improper installation. If the bearing is being installed into a printed part, bearing holder, or housing, make sure the bore is properly sized and aligned.
Keep Dust and Debris Away
The sealed design helps protect the internal bearing path, but the bearing should still be kept clean. Wipe the smooth rod with a clean lint-free cloth before installation and during regular maintenance. Avoid allowing filament dust, shop debris, CNC chips, sawdust, or abrasive particles to collect on the shaft.
Lubricate Lightly When Needed
Use a light machine oil or suitable linear bearing lubricant when required. Avoid excessive lubricant, especially in dusty environments, because heavy buildup can attract debris. After lubrication, move the carriage through the full travel length to distribute lubricant evenly.
Check Alignment Before Final Assembly
Linear ball bearings require good shaft alignment. Misaligned rods, twisted frames, uneven bearing holders, or over-constrained assemblies can create binding and rough travel. If using multiple bearings on one axis, confirm that rods are parallel and that the carriage moves freely before final tightening.
Use the Correct Bearing for the Shaft Size
Use the LM8UU bearing only with compatible 8mm smooth rods. Do not use it on 6mm rods or mismatched shafts. If your build uses 6mm smooth rods, use an LM6UU or LM6LUU bearing instead. If your build needs a longer 8mm bearing, use an LM8LUU instead.
Canadian Fulfillment and Quality Check
Every order is hand-inspected before shipping. dnb3D precision-ships motion components across Canada from our Ontario facility, helping 3D printer builders, makers, and machine owners receive clean, usable parts ready for careful installation.
