Product Details

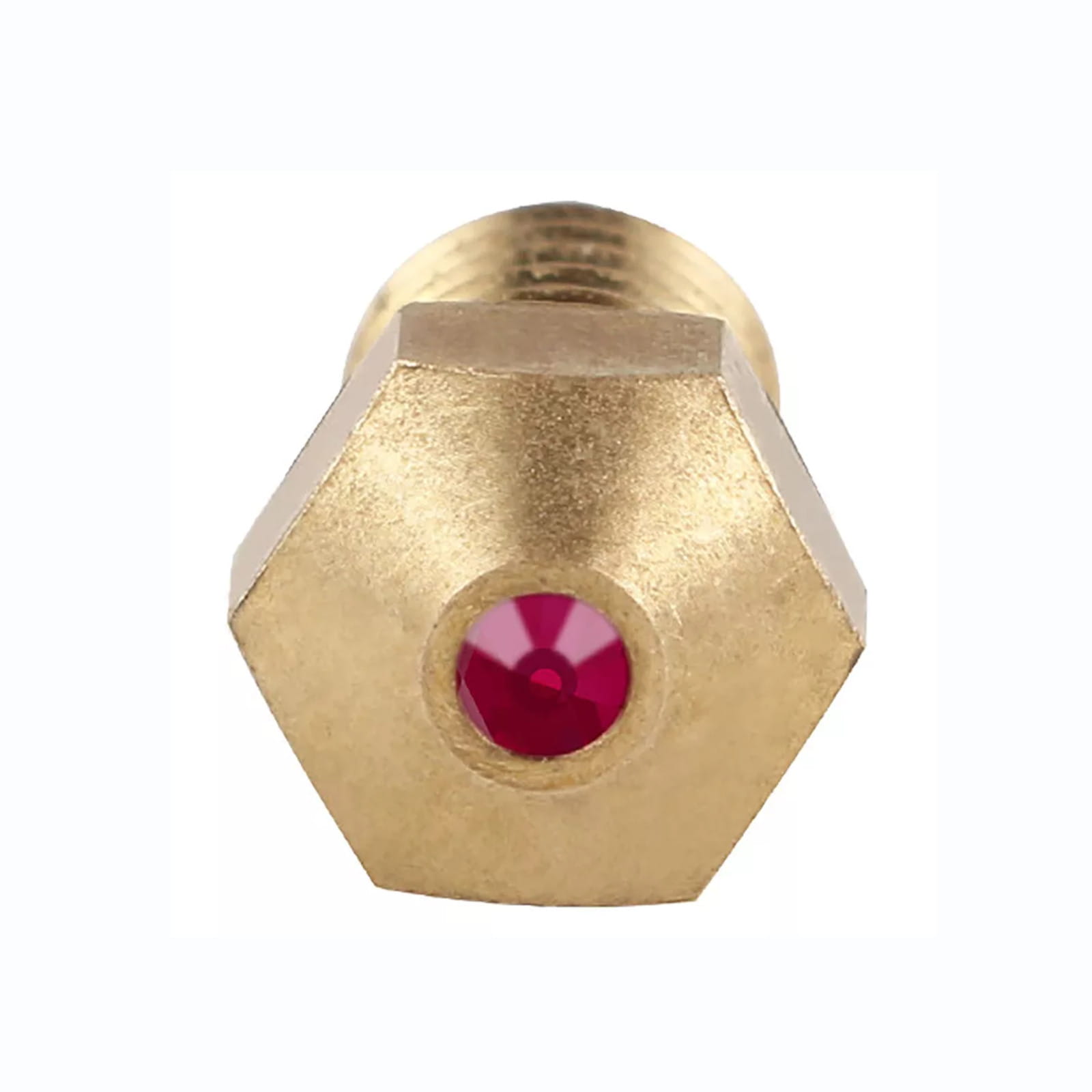

Premium V6 Ruby Tip Nozzle for 0.4mm 1.75mm 3D Printing

The V6 Ruby Tip Nozzle is a premium 0.4mm 3D printer nozzle designed for compatible M6 threaded V6-style and E3D-style hotends using 1.75mm filament. This nozzle combines a brass nozzle body with a ruby tip, giving users a practical mix of brass thermal conductivity and high-wear nozzle-tip durability for demanding printing applications.

Your current dnb3D product page describes this nozzle as a long-lasting solution that provides the wear-resistance benefits commonly associated with hardened nozzles while maintaining the thermal conductivity advantages of brass. It is listed with a 0.4mm nozzle diameter, M6 thread, 1.75mm filament compatibility, high corrosion resistance, high rust resistance, non-stick surface, high hardness, high wear resistance, and a maximum temperature rating of 300°C.

Ruby Tip Durability with Brass Thermal Conductivity

Standard brass nozzles are popular because brass transfers heat well, but abrasive filaments can wear the nozzle opening over time. A ruby tip nozzle is designed to provide a harder wear surface at the nozzle exit while keeping the brass body for heat transfer. This makes the V6 Ruby Tip Nozzle useful for users who want a premium nozzle option for demanding prints without fully switching to a lower-conductivity nozzle material.

0.4mm Nozzle for Everyday Printing Balance

The 0.4mm nozzle size is one of the most common choices for FDM 3D printing because it balances print detail, strength, flow rate, and print speed. It works well for prototypes, general printer maintenance, functional parts, and abrasive filament prints where you still want a standard nozzle diameter instead of moving to a larger high-flow opening.

M6 E3D-Style Hotend Compatibility

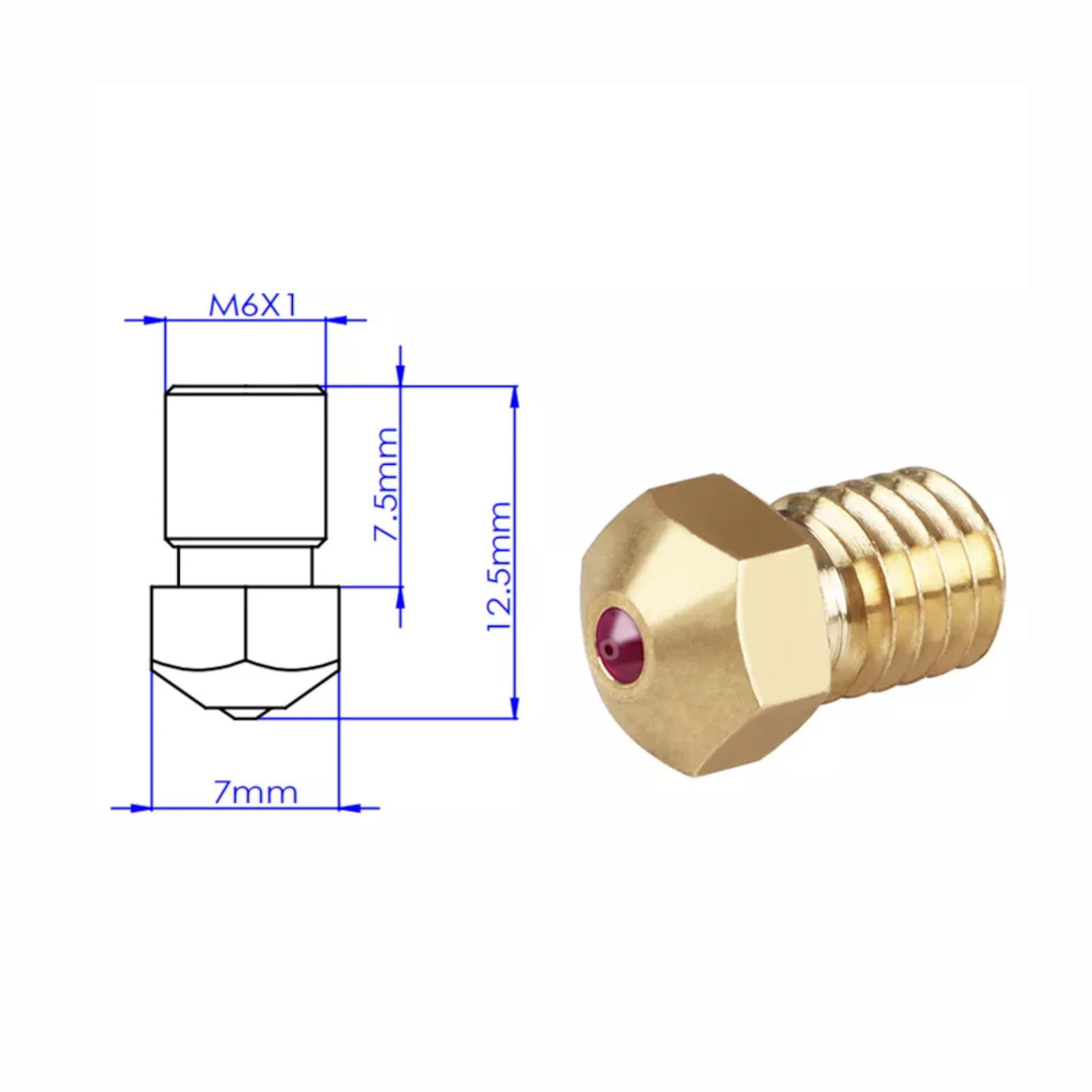

This nozzle uses an M6 thread and is listed as an E3D aftermarket replica. It is intended for compatible V6-style or E3D-style hotends that accept standard M6 nozzles for 1.75mm filament. Before ordering or installing, confirm your hotend type, thread size, nozzle length, heater block style, and filament diameter. A mismatched nozzle can cause leaks, poor heat transfer, clogging, or heater block damage.

Suitable for a Wide Range of Filaments

Your current product page states that this nozzle is suitable for all filament materials. For best results, always match print temperature, speed, retraction, and flow settings to the filament being used. When printing abrasive materials such as carbon fiber-filled, glow-in-the-dark, metal-filled, wood-filled, or glass-filled filament, inspect your setup regularly and avoid dragging debris across the nozzle tip.

Rated Up to 300°C

This product is listed with a maximum temperature rating of 300°C. Stay within the safe operating limits of your hotend, thermistor, heater cartridge, heat break, printer firmware, and filament. Printing near the upper end of any component’s temperature range should only be done on a properly configured printer.

Pair with Related 3D Printer Parts

For related components, browse the 3D Printer Parts category or the Nozzles category. This nozzle can be paired with heater blocks, silicone socks, heat breaks, thermistors, extruders, abrasive filament, and other 3D printer maintenance hardware from dnb3D.

Technical Reference

Nozzle material, nozzle size, hotend compatibility, and print settings all affect extrusion quality, wear resistance, flow, and print reliability. For general hotend and nozzle compatibility information, see the E3D V6 assembly and nozzle reference.

Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are printing abrasive materials, maintaining a high-use printer, or choosing a premium nozzle for long-service 0.4mm printing, this V6 Ruby Tip Nozzle provides a durable replacement option for compatible 1.75mm M6 E3D-style hotends.
