TBG-Lite Extruder

Bowden or Direct Drive

Price:

$89.95

SKU DB-0024-4859 Categories , Tags , ,
Credit Car Images

Product Details

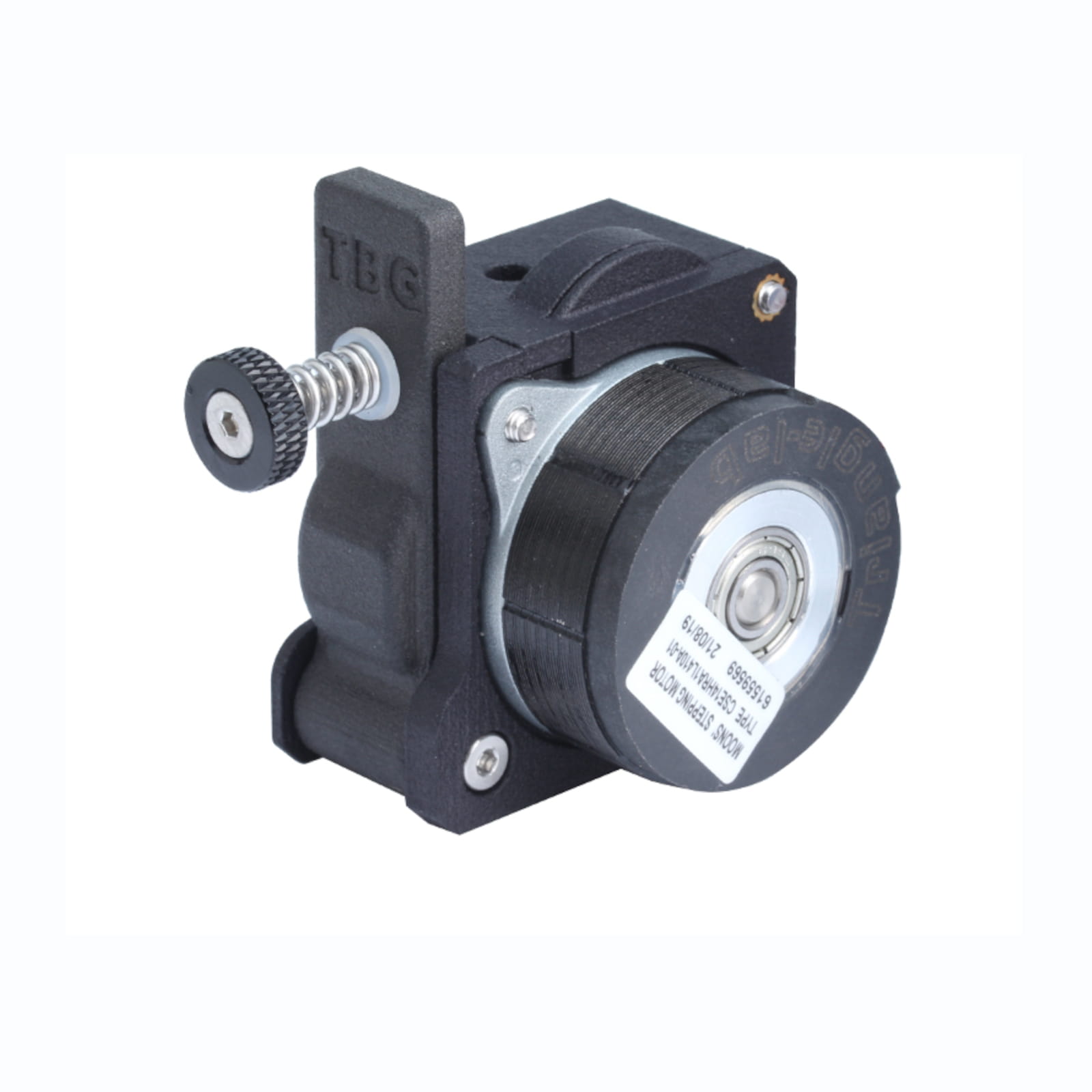

TBG-Lite Extruder

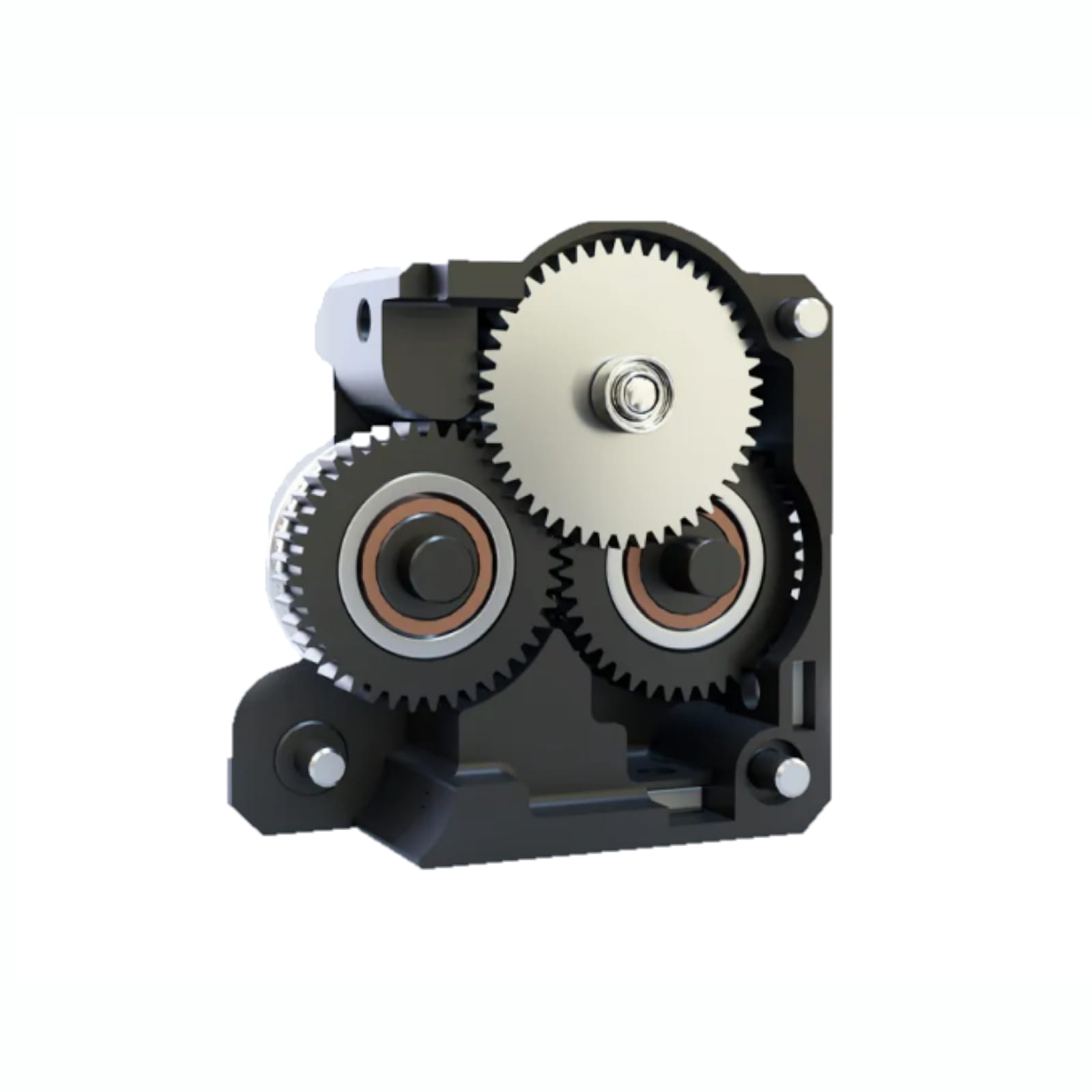

TBG-Lite Extruder, lite and compact at 143 g including motor. Large precision hardened stainless steel dual drive gears for maximum pushing power. An excellent option for any 3D printer upgrade or replacement.

This extruder comes as the default with our Rat Rig V-Core 3 standard build Kit.

The Dirt

  • Manufacturer: TriangleLab
  • Drive Type: Bowden or Direct Drive
  • Shell Body: Nylon12
  • Weight: 143g (with motor)
  • Filament diameter and tolerances: 1.75±0.05mm
  • Max pushing force: 8.2kg PETG @10mm/min @24V Driver
  • Max Environment operating temperature : 80°C
  • Max stepper motor running temperature : 100°C
  • Reduction ratio 11.53:1

2 Stepper motor options:

LDO-36STH20-1004AHG

MOONS_CSE14HRA1L410A-01

TriangleLab  Extruder Datasheet

Specifications

Technical Details

  • Design:

  • Dimensions:

  • Construction:

  • Material:

  • Total Thickness:

  • Weight:

  • Manufacturing: CNC Laser Cut & Hand-Assembled in Marathon, ON

Installation & Care

Installation and Care details coming soon.
