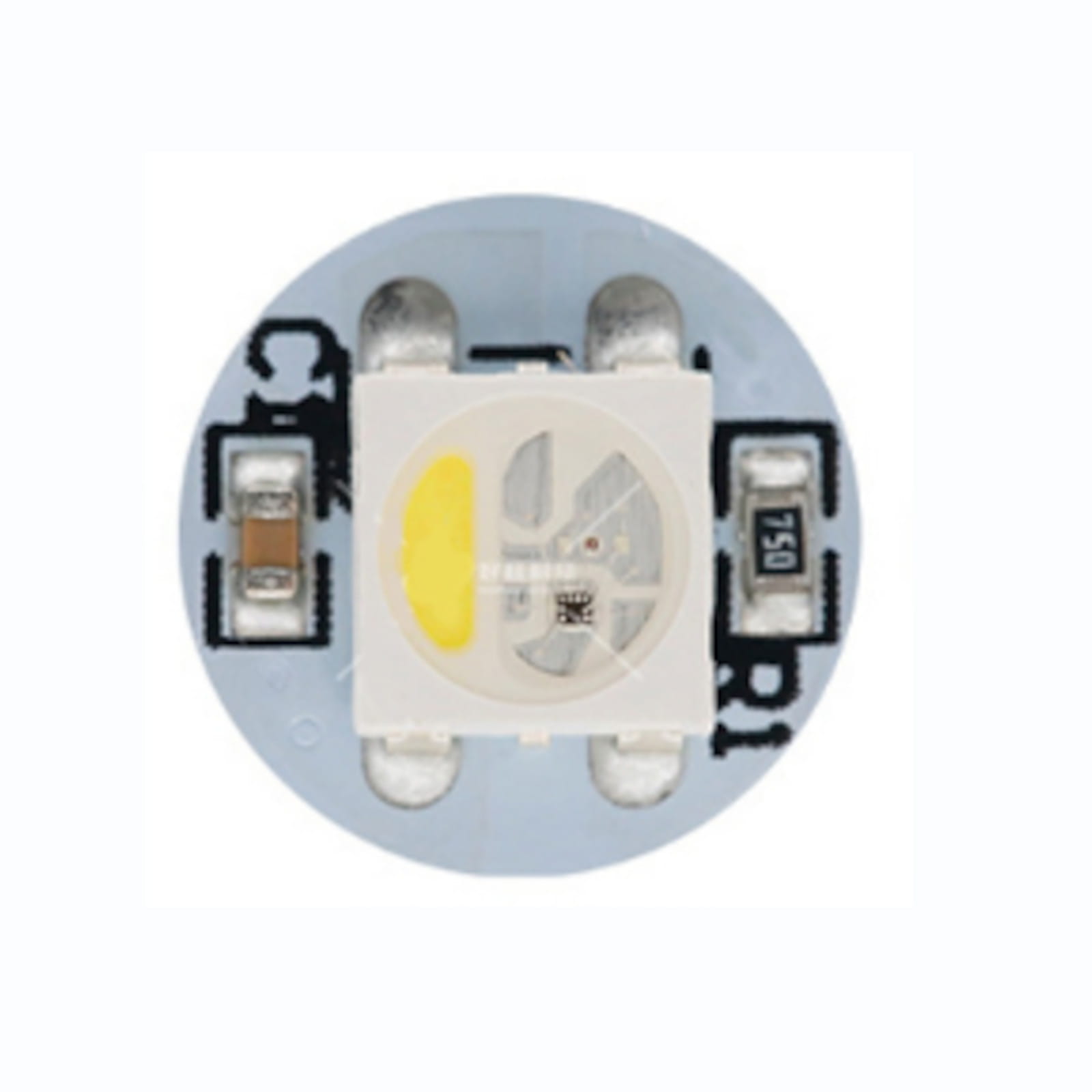

Button LED SK6812 RGBCW is a compact 5050 addressable RGB + natural white LED for compatible toolhead lighting, status indicators, electronics projects, and custom lighting applications.
$0.89
The SK6812 RGBCW LED is a compact addressable 5050 RGBW lighting component for compatible electronics projects, toolhead lighting, status indicators, accent lighting, and custom LED applications. It operates on DC5V and combines full-colour RGB output with a natural white channel listed at 4000K–5000K.
This SK6812 RGBCW LED uses a built-in SK6812 RGBW IC, similar in function to WS2812B-style addressable LEDs. It allows compatible controllers to control colour and brightness through a digital signal, making it useful for compact lighting projects where individual LED control is required.
The live product page lists this LED as RGBNW, meaning RGB plus natural white. The natural white channel is listed at 4000K–5000K, which can be useful when a cleaner white light is preferred instead of relying only on mixed RGB channels.
This LED uses G R B W colour order, not standard RGBW order. When configuring firmware, lighting software, or controller settings, make sure the colour order is set correctly so red, green, blue, and white channels display as expected.
The light source is listed as a 5050 RGBW LED with a 120° viewing angle and 10.0 mm FPCB width. This makes it suitable for compact lighting areas, toolhead button lighting, enclosure indicators, electronics projects, and custom machine lighting where the board size and voltage requirements match the design.
The current product page lists this LED as IP30 non-waterproof. It should be used in dry, protected locations and should not be exposed to water, coolant, conductive debris, or harsh environments unless properly protected by the final project design.
Browse more electronics parts, 3D printer accessories, and 3D printer parts for compatible lighting, wiring, control, and machine upgrade projects.
For general background on addressable LED control, see this overview of NeoPixel-style addressable LEDs.
Each Button LED SK6812 RGBCW is sold individually. Confirm voltage, colour order, wiring, controller compatibility, and firmware/software settings before installation.
| Product Type | Addressable RGBW LED / button LED |
|---|---|
| Model | SK6812 strip 5050RGBCW chip |
| LED Type | 5050 RGBW LED |
| Signal / IC | SK6812 RGBW IC, built into LED |
| Input Voltage | DC5V |
| Colour Order | G R B W, not RGBW |
| Colour Output | RGB + Natural White, 4000K–5000K |
| Colour Depth | Full colour 32-bit, 8-bit each channel |
| Gray Level | 256 |
| Viewing Angle | 120° |
| FPCB Width | 10.0 mm |
| Power | 40 mA |
| Luminous Flux | Red 0.5–1.0 lm, Green 2–3 lm, Blue 0.5–1.0 lm, White 5–7 lm |
| Wavelength | Red 620–630nm, Green listed as 515–5250nm, Blue 460–470nm |
| Waterproof Rating | IP30, non-waterproof |
| Operating Temperature | -20°C to +50°C |
| Common Applications | Toolhead lighting, status indicators, electronics projects, compatible 3D printer lighting, accent lighting, and custom LED applications |
| Quantity | Sold individually |
| SKU | DB-0579-6881 |
Verification note: The green wavelength appears to be listed as 515–5250nm on the current page and should be verified before publishing. The recommended power supply line also needs verification because the page lists DC5V20A with 10W, but 5V at 20A equals 100W.
