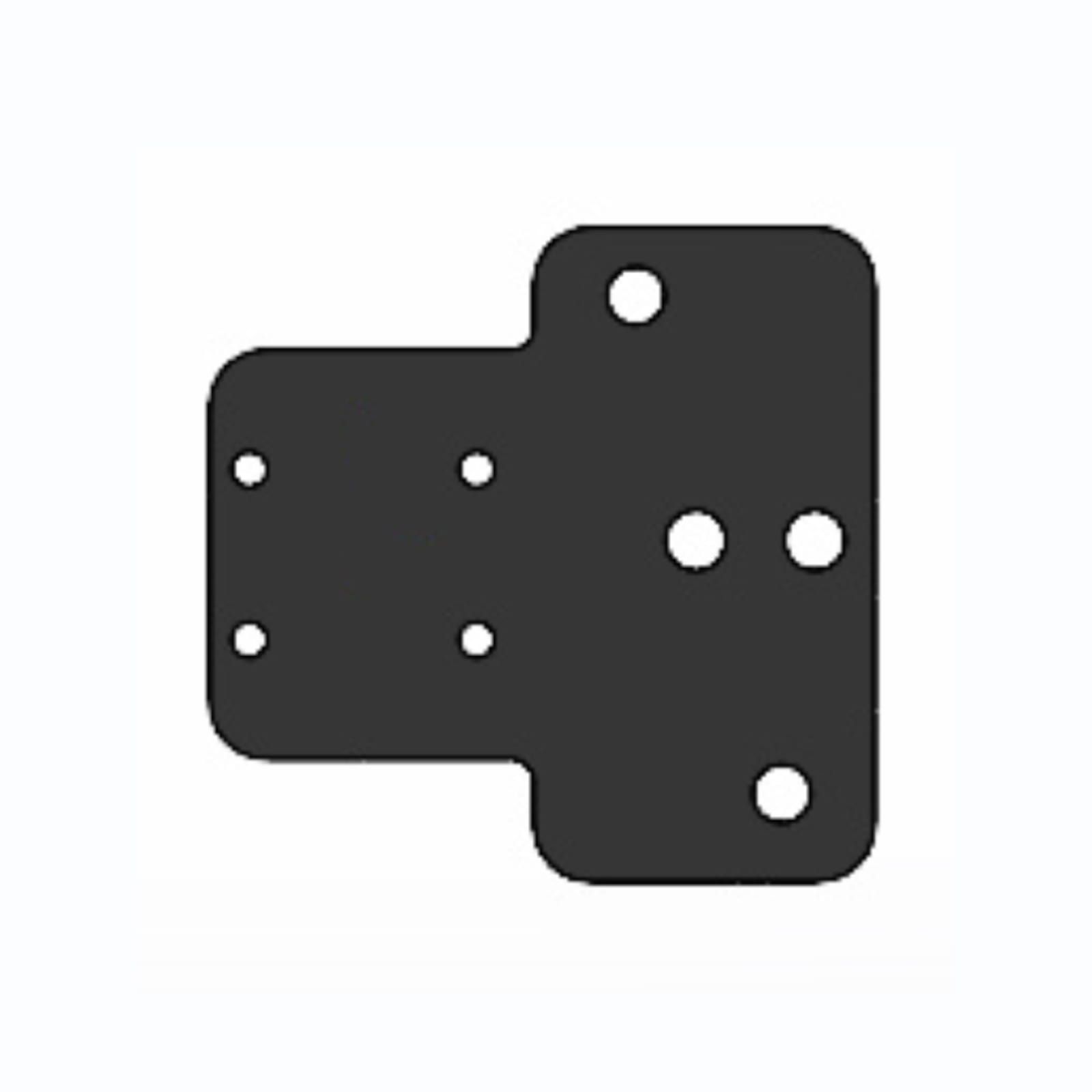

RatRig V-Core XY Joiner Plate for the XY axis gantry assembly on compatible RatRig V-Core 3 and V-Core 3.1 3D printer builds.
$7.45
The RatRig V-Core XY joiner plate is used for the XY axis gantry assembly on compatible RatRig V-Core 3 and V-Core 3.1 3D printer builds. This plate helps connect the gantry assembly to the frame’s linear rail system and is listed on the current dnb3D product page as compatible with all V-Core 3 build sizes.
This XY joiner plate is intended for RatRig V-Core motion assemblies where the gantry layout, rail mounting, belt path, and hardware stack-up match the V-Core design. For the listed V-Core 3 application, the current product page notes that 2 pieces are required.
The XY joiner plate is part of the CoreXY motion system and supports the gantry assembly connection to the frame’s linear rails. Correct plate alignment is important for smooth gantry travel, consistent belt routing, and reliable XY motion.
This is a build-specific plate rather than a general-purpose flat bracket. It is primarily suited for RatRig V-Core 3 and V-Core 3.1 builds. It may also work for other custom CoreXY printer projects only if the plate shape, hole spacing, material thickness, linear rail layout, and gantry design match your project requirements.
The current dnb3D product page also lists other required V-Core plates, including the Idler Plate and Motor Plate. Confirm your full plate set and required quantities before starting assembly.
Browse more RatRig V-Core parts, linear guide rail and blocks, and hardware components for compatible CoreXY motion systems, gantry assemblies, repairs, and custom printer builds.
For build-specific assembly details, see the official RatRig V-Core 3 build guide.
Each RatRig V-Core XY joiner plate is sold individually. The current product page notes that 2 pieces are required for the listed V-Core 3 XY gantry assembly use.
| Product Type | XY axis joiner plate / gantry assembly plate |
|---|---|
| Primary Compatibility | RatRig V-Core 3 / V-Core 3.1 compatible builds |
| Listed Assembly Use | XY Axis Gantry Assembly |
| Build Size Compatibility | Listed as compatible with all V-Core 3 build sizes |
| Required Quantity for Listed Use | 2 pieces |
| Related Plates | Idler Plate and Motor Plate |
| Common Applications | RatRig V-Core XY gantry assemblies, V-Core motion system repairs, compatible CoreXY printer builds, and replacement plate sets |
| Quantity | Sold individually |
| SKU | DB-0006-4839 |
Verification note: Material, thickness, finish, exact dimensions, hole spacing, hardware requirements, and manufacturing method are not listed clearly on the current product page and should be verified before adding.
