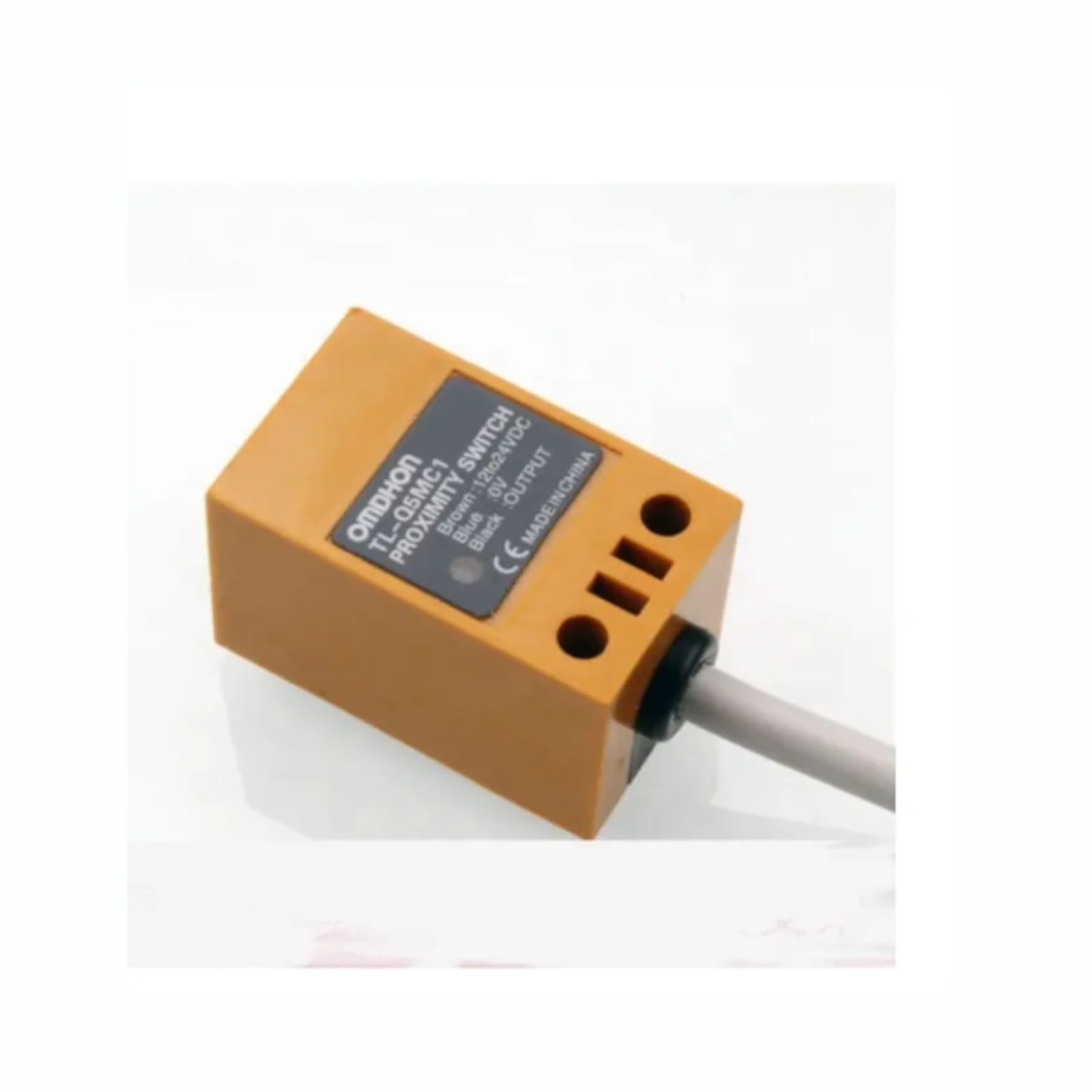

Omron Proximity Switch TL-Q5MC1 is a compact square inductive sensor designed for compatible automation, machine, electronics, and 3D printer applications. With 5mm sensing distance, DC 3-wire wiring, NPN open collector output, and normally open operation, it is a practical choice for metal detection and position-sensing setups.
$39.95
The Omron Proximity Switch TL-Q5MC1 is a compact square inductive proximity sensor used for compatible metal detection, position sensing, automation hardware, electronics projects, and machine-control applications. It is commonly selected when a compact DC 3-wire sensor with NPN normally open output is required.
This Omron Proximity Switch TL-Q5MC1 has a listed sensing distance of 5mm ±10%. Omron identifies the TL-Q5MC1 as a rectangular standard proximity sensor with an unshielded square body and a recommended setting distance of 0 to 4mm. Always confirm the sensing target, mounting method, and installation clearance before use.
The TL-Q5MC1 is a DC three-wire proximity switch with NPN open collector output and normally open operation. This makes it suitable for compatible control boards, automation circuits, machine inputs, and electronics systems designed for NPN NO sensor wiring.
This sensor can be used in a variety of compatible applications, including machine position sensing, metal object detection, automation fixtures, hobby electronics, CNC-style projects, and 3D printer hardware. The current dnb3D page lists it for the Voron 2.4 Stealthburner build, but compatibility is not limited to one printer platform. Always confirm voltage, wiring, output type, firmware settings, and physical fitment before installation.
Omron lists the TL-Q5MC1 sensing head size as 17mm x 17mm x 28mm. Its compact rectangular form factor helps it fit into tight mechanical layouts where space is limited and precise sensor placement matters.
According to Omron, the TL-Q5MC1 2M has an operating voltage range of 10 to 30 VDC, current consumption of 10mA max at 24 VDC, response time of 2ms max, and IEC IP67 protection rating. For full manufacturer details, review the official Omron TL-Q5MC1 product page.
Before installing this sensor, confirm that your controller or input device supports an NPN normally open inductive proximity switch. Incorrect wiring or voltage can damage electronics. If you are sourcing related control hardware, browse our 3D printer electronics category for compatible boards, modules, and accessories.
Each order is handled by dnb3D in Marathon, Ontario, Canada. This compact Omron sensor is a useful part to keep on hand for compatible machine builds, repairs, automation projects, and 3D printer upgrades.
Below are the confirmed and manufacturer-listed specifications for the Omron Proximity Switch TL-Q5MC1. Always verify wiring, voltage, sensor type, and controller compatibility before installation.
| Product Name | Omron Proximity Switch TL-Q5MC1 |
|---|---|
| Product Type | Inductive proximity sensor / proximity switch |
| SKU | DB-0570-6847 |
| Manufacturer | Omron |
| Model | TL-Q5MC1 |
| Sensor Shape | Square / rectangular standard proximity sensor |
| Sensing Type | Inductive, unshielded |
| Sensing Distance | 5 mm ±10% |
| Setting Distance | 0 to 4 mm |
| Power Source | DC 3-wire |
| Operating Voltage Range | 10 to 30 VDC |
| Power Supply Voltage | 12 to 24 VDC, ripple 10% max |
| Output Type | NPN open collector |
| Operation Mode | Normally open / NO |
| Switching Capacity | 50 mA max, 30 VDC max |
| Response Time | 2 ms max |
| Response Frequency | 500 Hz average value |
| Sensing Object | Ferrous metal; sensitivity lowers with non-ferrous metals |
| Standard Sensing Object | Iron, 15 mm x 15 mm x 1 mm |
| Sensing Head Size | 17 mm x 17 mm x 28 mm |
| Indicator | Detection indicator, red |
| Protection Rating | IEC IP67 |
| Connection Method | Pre-wired model, 2 m cable — verify exact stock version before publishing |
| Case Material | Heat-resistant ABS resin |
| Sensing Surface Material | Heat-resistant ABS resin |
| Common Applications | Compatible automation hardware, machine sensing, metal detection, electronics projects, 3D printer hardware, and position-sensing applications |
| Installation Warning | Confirm voltage, wiring type, output type, controller compatibility, sensing distance, and target material before installation. Incorrect wiring may damage electronics. |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
Before installing the Omron Proximity Switch TL-Q5MC1, confirm that your controller, input board, PLC, printer control board, or electronics system supports a DC 3-wire NPN normally open inductive proximity sensor. Check your wiring diagram, voltage requirements, input logic, firmware settings, and sensor mount before connecting power.
Use the sensor only within the correct voltage range and wiring configuration. Omron lists the operating voltage range as 10 to 30 VDC. Incorrect polarity, incorrect input type, over-voltage, or shorted wiring can damage the sensor or connected electronics. Disconnect power before wiring or adjusting electrical connections.
This sensor has a listed sensing distance of 5mm ±10% and a setting distance of 0 to 4mm. For best results, mount the sensor securely and position the target within the recommended detection range. Ferrous metal targets provide the intended sensing response; sensitivity may be reduced with non-ferrous metals.
Because this is an unshielded inductive proximity sensor, nearby metal can affect detection performance. Leave proper clearance around the sensing face and surrounding hardware where possible. Test the sensor after mounting to confirm repeatable triggering before relying on it for homing, positioning, or machine-control functions.
This sensor may be used in compatible 3D printer hardware, automation projects, machine-position sensing, CNC-style fixtures, and custom electronics builds. Compatibility depends on the exact controller, input circuit, mounting design, firmware configuration, and target material. Do not assume compatibility based on connector appearance alone.
Keep the sensor clean and dry before installation. Avoid crushing the cable, pulling on the wire strain relief, striking the sensing face, or exposing the sensor to harsh chemicals. Store unused sensors in a clean parts organizer or sealed bag until needed.
After installation, test the detection indicator and controller input before running the machine or printer. Confirm that the sensor triggers consistently at the expected distance and that the connected system responds correctly.
Each order is checked before fulfillment and precision-shipped from dnb3D in Marathon, Ontario, Canada.
