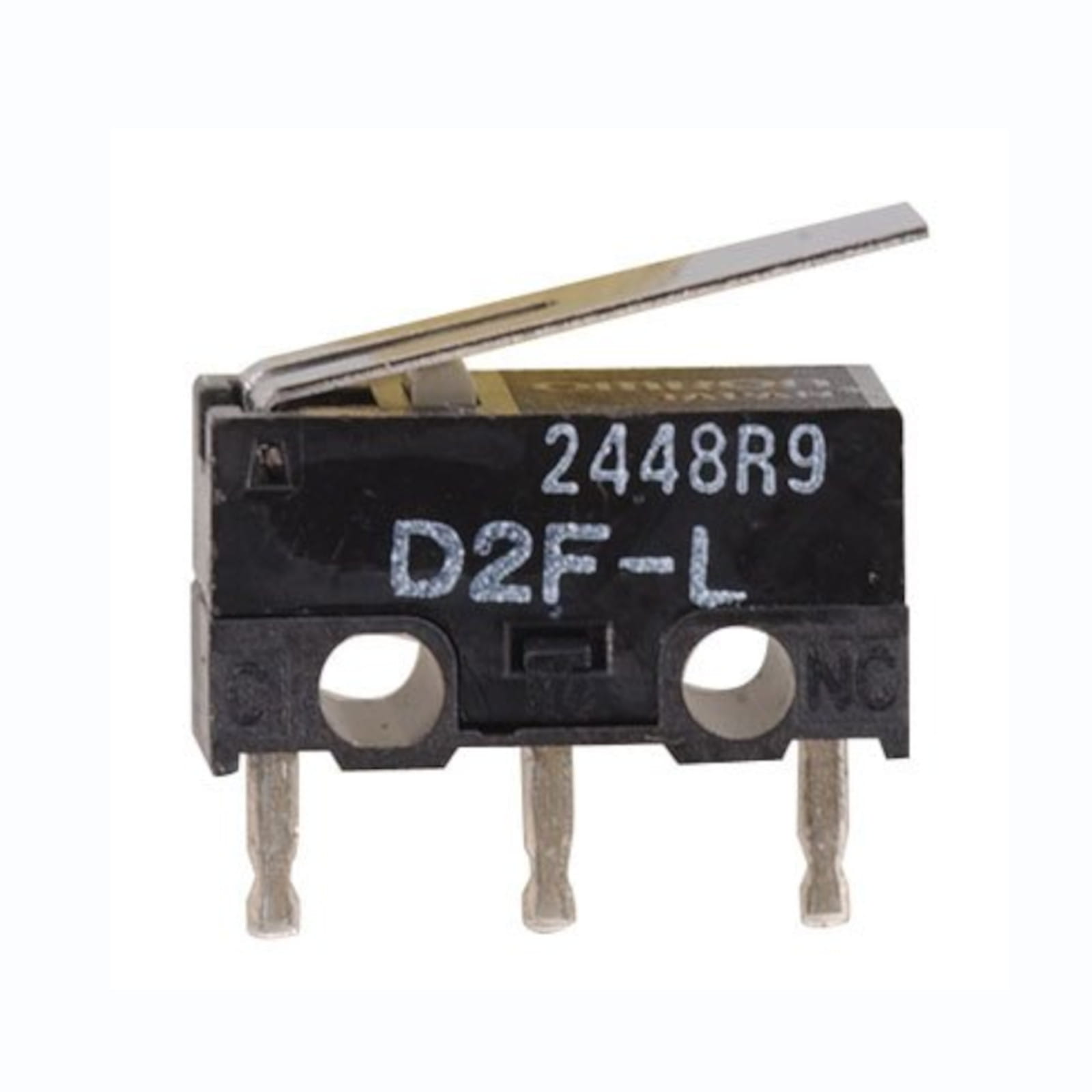

Omron D2F-L Microswitch is a compact hinge-lever snap action switch used in compatible homing, limit, control, CNC, laser, electronics, and 3D printer applications. With SPDT contacts, solder terminals, 3A rating, and 80gf operating force, it is a practical switch for small motion and position-sensing setups.
$6.95
The Omron D2F-L Microswitch is a compact hinge-lever snap action switch used in compatible homing, limit, control, motion, CNC, laser machine, electronics, and 3D printer applications. Its ultra-subminiature body makes it useful in tight mechanical layouts where a small lever-actuated switch is required.
This Omron D2F-L Microswitch uses a hinge lever actuator, making it suitable for applications where a moving carriage, axis, panel, cam, or mechanical stop needs to trigger the switch. The compact format helps it fit into smaller assemblies while still providing a clear tactile switch action.
The D2F-L is commonly listed as an SPDT switch. That means it can be wired for normally open or normally closed operation depending on which terminals are used. This is important because the current live page contains a confusing “Normally Open (NC)” note. Always confirm your wiring logic before installation.
The current dnb3D page lists the switch with a 3A max contact current, 125VAC nominal contact voltage, 30VDC nominal contact voltage, and solder terminals. These values are consistent with common D2F-L distributor listings. Always confirm your circuit requirements before use.
This switch can be used in compatible 3D printers, CNC machines, laser machines, electronics projects, robotics setups, fixtures, test jigs, and small automation systems. It is often used where a mechanical position input, homing switch, or limit signal is required.
The current dnb3D product page notes that 2 switches are required for one listed Voron 2.4 build application. This is one possible use case, but the Omron D2F-L Microswitch is not limited to one printer platform. Always verify switch type, quantity, mounting method, wiring logic, and firmware configuration for your specific build.
For manufacturer documentation, review the official Omron D2F series datasheet. The datasheet includes model variations, terminal styles, ratings, operating characteristics, and switch handling guidance.
If you are wiring a printer, CNC controller, electronics enclosure, or motion system, browse our Electronics category for related switches, sensors, wiring, control boards, and power components.
Each order is handled by dnb3D in Marathon, Ontario, Canada. This compact microswitch is useful to keep on hand for compatible machine repairs, printer maintenance, homing setups, limit switch replacements, and small electronics projects.
Below are the confirmed and manufacturer-reference specifications for this Omron D2F-L Microswitch. Always verify wiring logic, electrical rating, mounting style, and controller compatibility before installation.
| Product Name | Omron D2F-L Microswitch |
|---|---|
| Product Type | Ultra-subminiature snap action microswitch / basic switch |
| SKU | DB-0600-6939 |
| Manufacturer | Omron |
| Model | D2F-L |
| Actuator Type | Hinge lever |
| Contact Configuration | SPDT |
| Switch Logic | Can be wired as normally open or normally closed depending on terminal selection |
| Terminal Style | Solder terminals / solder pin style |
| Contact Current Max | 3A |
| Contact Voltage AC | 125VAC nominal |
| Contact Voltage DC | 30VDC nominal |
| Operating Force Max | 80gf |
| Protection Rating | IP40 according to common distributor listing |
| Common Applications | Compatible homing switches, limit switches, CNC machines, laser machines, 3D printers, robotics, electronics projects, fixtures, and small automation systems |
| Listed Printer Application | One listed application uses 2 switches for a Voron 2.4 build |
| Quantity Sold | 1 Omron D2F-L microswitch per quantity unless otherwise listed |
| Installation Warning | Confirm contact logic, terminal selection, voltage, current, mounting position, wiring, and controller compatibility before installation. Incorrect wiring may cause failed homing, incorrect switch behavior, or electronics damage. |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
Before installing the Omron D2F-L Microswitch, confirm whether your application requires normally open or normally closed operation. Because this switch is commonly listed as SPDT, the behavior depends on which terminals are used. Check your controller input, firmware settings, and wiring diagram before connecting the switch.
This switch uses solder terminals. Use proper soldering technique and avoid excessive heat, as overheating the terminals can damage the switch body or internal contacts. Add strain relief where needed so wires are not pulling directly on the solder joints.
Mount the switch securely so the hinge lever is triggered cleanly by the moving part, carriage, cam, panel, or mechanical stop. Avoid over-travel, side loading, crushing the lever, or positioning the switch where the actuator can be bent or damaged.
This microswitch may be used in compatible 3D printers, CNC machines, laser machines, robotics, automation projects, electronics fixtures, and motion systems. Compatibility depends on the exact switch logic, wiring, mounting location, firmware configuration, and mechanical trigger design.
After installation, test the switch state before running machine movement or homing. Verify that the controller reads the switch correctly in both triggered and untriggered states. Do not run full-speed movement until the switch response is confirmed.
Keep the switch clean and dry before installation. Avoid bending the hinge lever, contaminating the contacts, dropping the switch, or storing it loose with heavy hardware that may damage the actuator or terminals.
If your machine develops inconsistent homing, false triggers, missed triggers, or intermittent switch behavior, inspect the lever, mounting screws, solder joints, wiring, contact logic, and controller input. Replace worn or damaged switches as needed.
