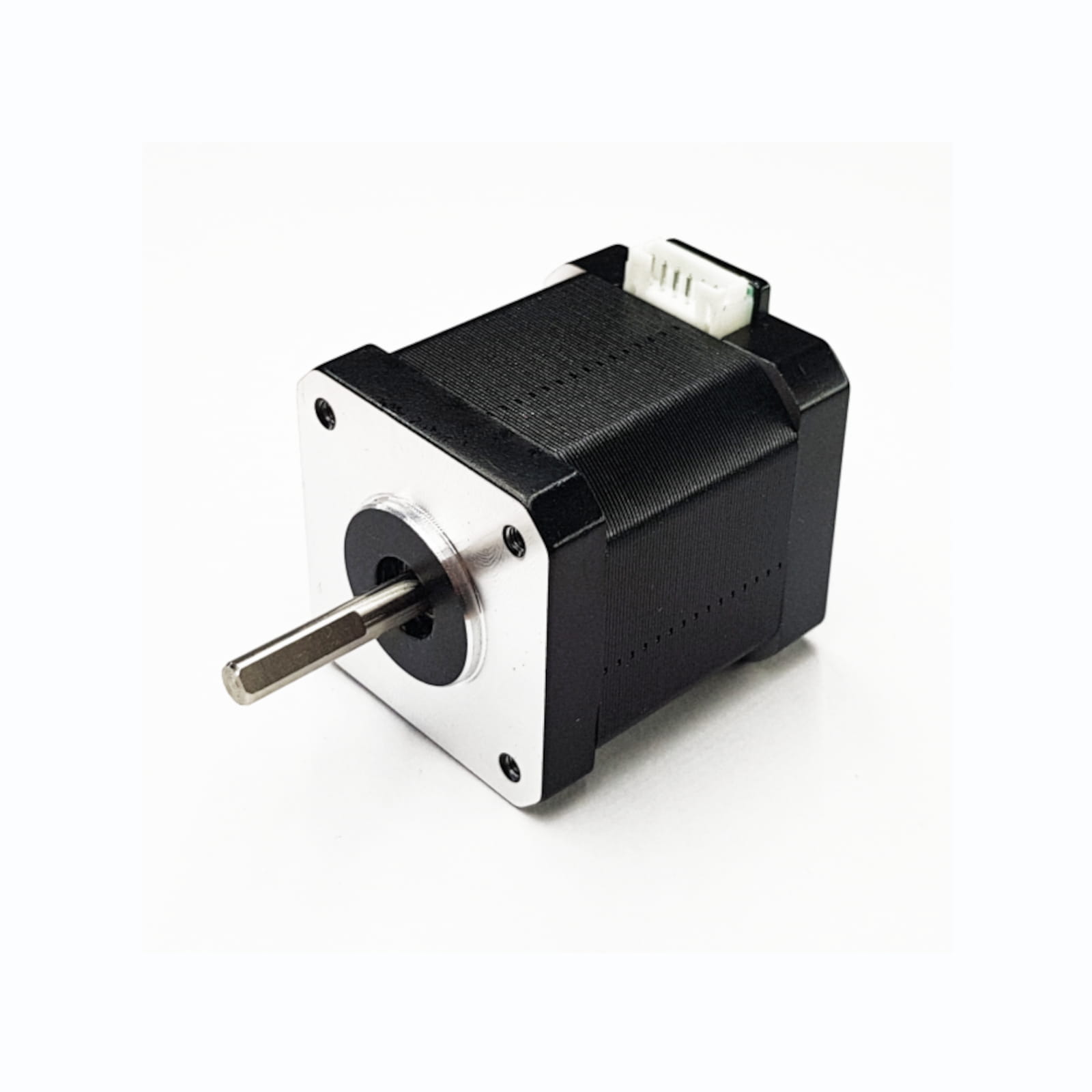

NEMA17 Stepper Motor 17HS19-2004S1 is a 48 mm bipolar stepper motor with 59 Ncm holding torque for compatible 3D printer motion systems, belt-driven axes, positioning assemblies, light-duty automation, and custom electronics projects.
$31.95
The NEMA17 stepper motor 17HS19-2004S1 is a bipolar motion motor for compatible 3D printer motion systems, light-duty automation, positioning mechanisms, machine repairs, and custom electronics projects. With a 48 mm body length, 1.8° step angle, 2.0A rated current per phase, and 59 Ncm holding torque, this motor is useful for applications that require controlled rotational movement in a standard NEMA17 frame size.
This NEMA17 stepper motor is designed for applications that require repeatable rotational movement and stable holding torque. It can be used in compatible printer motion systems, linear motion assemblies, belt-driven axes, positioning fixtures, light-duty automation projects, and equipment repairs where the electrical and mechanical specifications match the design.
The 17HS19-2004S1 stepper motor uses a 42 × 42 mm NEMA17 frame with a 48 mm body length. It also features a 5 mm shaft diameter, 24 mm shaft length, and 15 mm D-cut length, making it suitable for compatible pulleys, gears, couplers, and drive components.
This NEMA17 stepper motor is rated at 2.0A per phase and provides a listed holding torque of 59 Ncm. The motor should be paired with a compatible stepper driver and configured with the correct current settings, wiring order, cooling, and firmware configuration before operation.
The 17HS19-2004S1 model is commonly listed with a 1000 mm lead length. Before installation, confirm the connector style, pinout, coil pairs, and cable compatibility with your controller or stepper driver.
Browse more stepper motors, electronics parts, and 3D printer parts for compatible motion systems, repairs, and custom build projects.
For general background on how stepper motors work, see this overview of stepper motors and their control.
Each NEMA17 stepper motor is sold individually. Confirm cable and connector details before installation.
Full Datasheet: 17HS19-2004S1.pdf
| Product Type | Bipolar stepper motor |
|---|---|
| Model / Part Number | 17HS19-2004S1 |
| Frame Size | NEMA17 / 42 × 42 mm |
| Body Length | 48 mm |
| Step Angle | 1.8° |
| Holding Torque | 59 Ncm / 83.55 oz-in |
| Rated Current / Phase | 2.0A |
| Phase Resistance | 1.4 ohms |
| Inductance | 3.0mH ±20% at 1KHz |
| Insulation Class | Class B, 130°C |
| Shaft Diameter | 5 mm |
| Shaft Length | 24 mm |
| D-Cut Length | 15 mm |
| Number of Leads | 4 |
| Lead Length | 1000 mm / 1 m |
| Weight | 390 g |
| Common Applications | Compatible 3D printer motion systems, belt-driven axes, linear motion systems, positioning assemblies, light-duty automation, repairs, and custom electronics projects |
| Quantity | Sold individually |
Verification note: SKU, price, connector type, exact cable/connector configuration, dnb3D category placement, manufacturer/distributor source, and any listed compatibility notes should be confirmed directly in WooCommerce before publishing.
