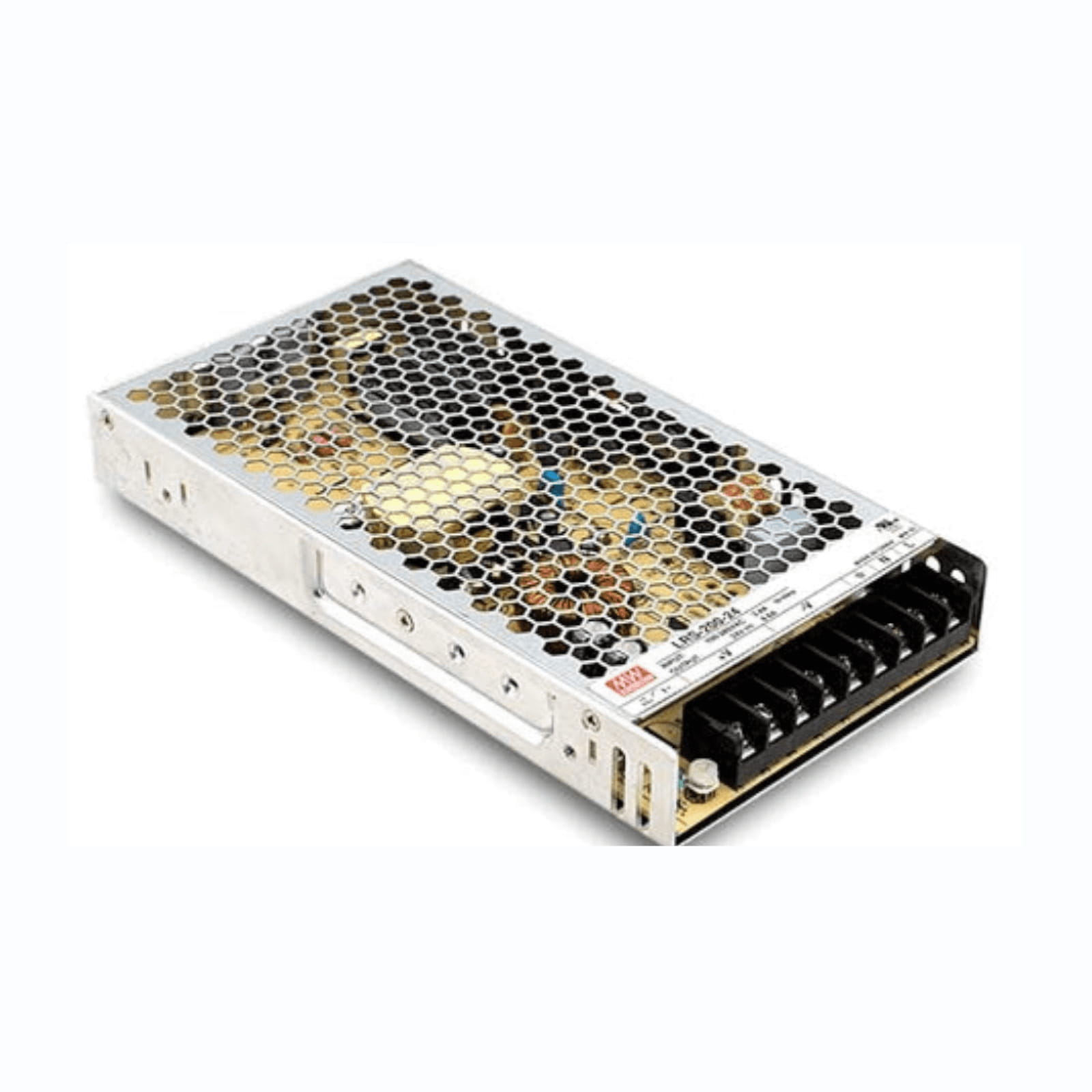

MEAN WELL LRS-200-24 Power Supply is an enclosed AC/DC single-output power supply rated at 211.2W, 24V, and 8.8A for compatible 24V electronics, machine, control, and 3D printer applications.
$53.95
10 in stock
The MEAN WELL LRS-200 power supply is an enclosed AC/DC single-output power supply for compatible electronics, control panels, 3D printer builds, CNC-style equipment, LED systems, automation projects, and other 24V DC applications. This version is listed on dnb3D as a 211.2W, 24V, 8.8A power supply with a selectable 115VAC / 230VAC input switch.
The LRS-200 series is designed for single-output DC power applications where a compact enclosed supply is required. With a 24V output and 8.8A current rating, this unit can be used in compatible machine builds, printer electronics, control boxes, lighting systems, and equipment projects where the voltage, current, load type, and wiring requirements match the design.
The current product page lists the input as 115VAC or 230VAC, selected by switch. Always confirm the correct input setting before powering the supply. Incorrect input selection can damage equipment or create a safety hazard.
This MEAN WELL LRS-200 power supply uses free-air convection cooling and a metallic mesh case to support heat dissipation without a fan. The low-profile 1U enclosure is useful for compact control panels, electronics bays, machine frames, and printer builds where space and airflow need to be considered.
The live product page lists protection features for short circuit, overload, overvoltage, and overtemperature conditions. It also lists a power-on LED indicator, no-load power consumption under 0.75W, 100% full-load burn-in testing, and a 3-year warranty.
This power supply connects to AC mains voltage and should be installed only by someone familiar with safe electrical wiring practices. Confirm enclosure grounding, wire gauge, fusing, ventilation, terminal protection, strain relief, and load requirements before installation.
Browse more power supplies, electronics parts, and 3D printer parts for compatible machine wiring, repairs, and custom build projects.
For full technical specifications and drawings, see the official MEAN WELL LRS-200 datasheet.
Each MEAN WELL LRS-200 power supply is sold individually. Confirm the output voltage, current rating, input switch setting, wiring, ventilation, and safety requirements before installation.
| Product Type | Enclosed AC/DC single-output power supply |
|---|---|
| Brand / Series | MEAN WELL LRS-200 |
| Output Power | 211.2W |
| Output Voltage | 24V DC |
| Output Current | 8.8A |
| Input Voltage | 115VAC / 230VAC selectable by switch |
| Efficiency | Up to 90% |
| Cooling | Free air convection, fanless |
| Profile | 1U low-profile design |
| Protections | Short circuit, overload, overvoltage, and overtemperature |
| Surge Withstand | 300VAC surge input for 5 seconds |
| No-Load Power Consumption | Less than 0.75W |
| Indicator | Power-on LED indicator |
| Vibration Test | Withstand 5G vibration test |
| Burn-In Test | 100% full-load burn-in test |
| Operating Temperature | Up to +70°C, according to the current product page |
| Warranty | 3-year warranty |
| Common Applications | 24V electronics, 3D printer builds, CNC-style control boxes, automation projects, LED lighting, machine wiring, and compatible DC power systems |
| Quantity | Sold individually |
| SKU | DB-0031-4930 |
Verification note: Exact model suffix should be confirmed as LRS-200-24 before publishing. Physical dimensions, terminal layout, certification markings, derating curve, and full safety approvals should be verified from the official MEAN WELL datasheet before adding.
