Product Details

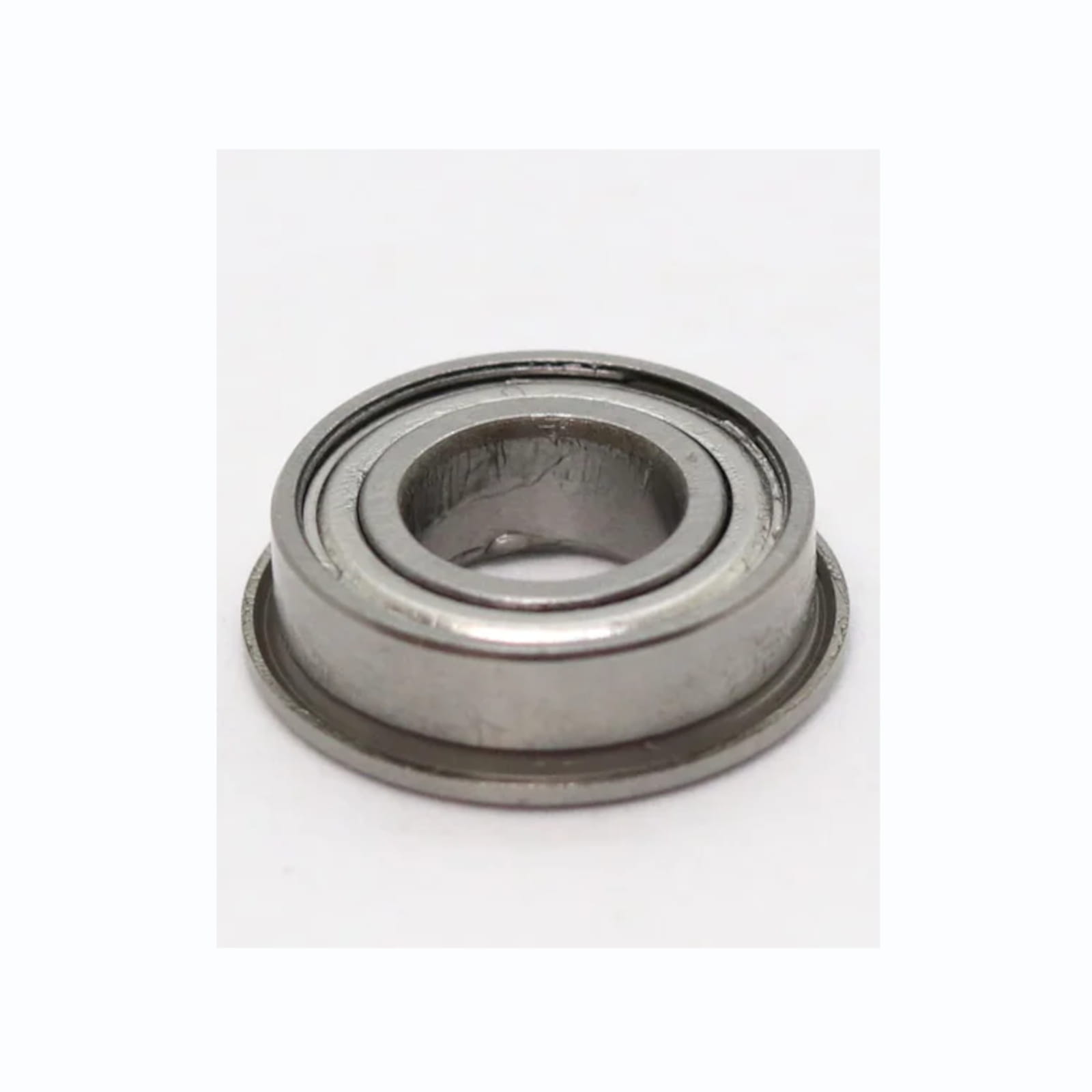

F695ZZ Bearing (Flange)

F695ZZ Bearing (Flange) 5mm x 14mm x 4mm   made of Chrome Steel, this bearing is sealed with rubber seals to protect the bearing from dust or any possible contamination,this is self lubricated bearing (bearing is already greased).

Sold here specifically for the Voron 2.4 A/B Drive Assembly, 12 required and the A/B Idler Assembly, 4 Required.

Also required for the Rat Rig V-Core 3.1 Upgrade, 24 Required

Specifications

• Type: Deep Groove Ball Bearing
• Closures: 2 Rubber Seals
• Material: Chrome Steel
• Quality: Electric Motor Quality
• Dimensions: 5mm x 13mm x 4mm
• ID (inner diameter)/Bore: 5mm
• OD (outer diameter): 13mm
• Width/Height/thickness: 4mm
• Dynamic load rating Cr: 1,750 N
• Static load rating Cor: 670 N
• Limiting Speed:
• Grease Lubrication: 40,000 RPM
• Quantity: one Bearing

Other available bearing can be viewed here

The Voron 2.4 assembly manual can be downloaded here for reference.
