Button LED SK6812 RGBCW

Button LED SK6812 RGBCW
Stealthburner 3 RGBW Button LEDs

SK6812 strip 5050RGBCW chip

Price:

$0.89

SKU DB-0579-6881 Categories , , , Tags , ,
Credit Car Images

Product Details

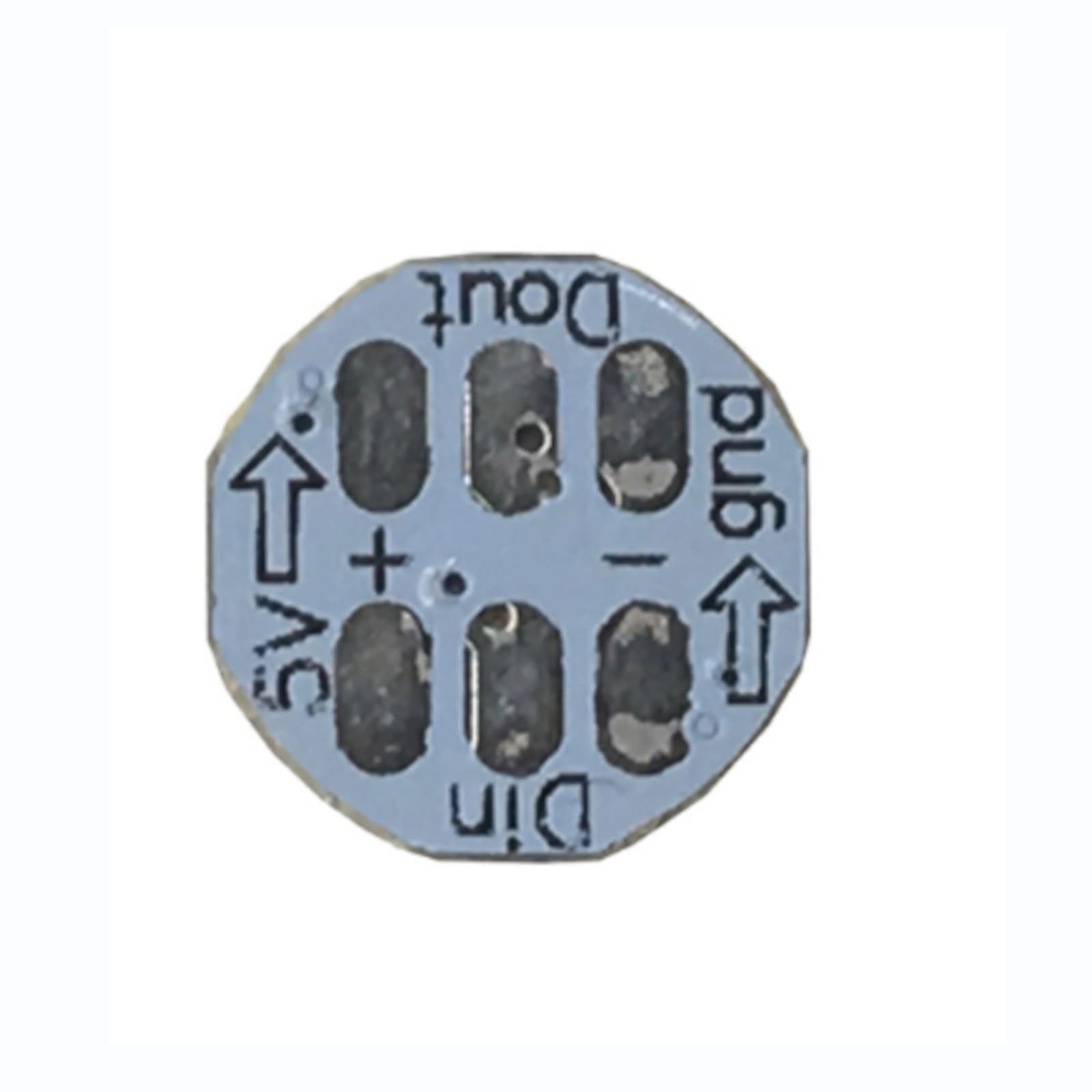

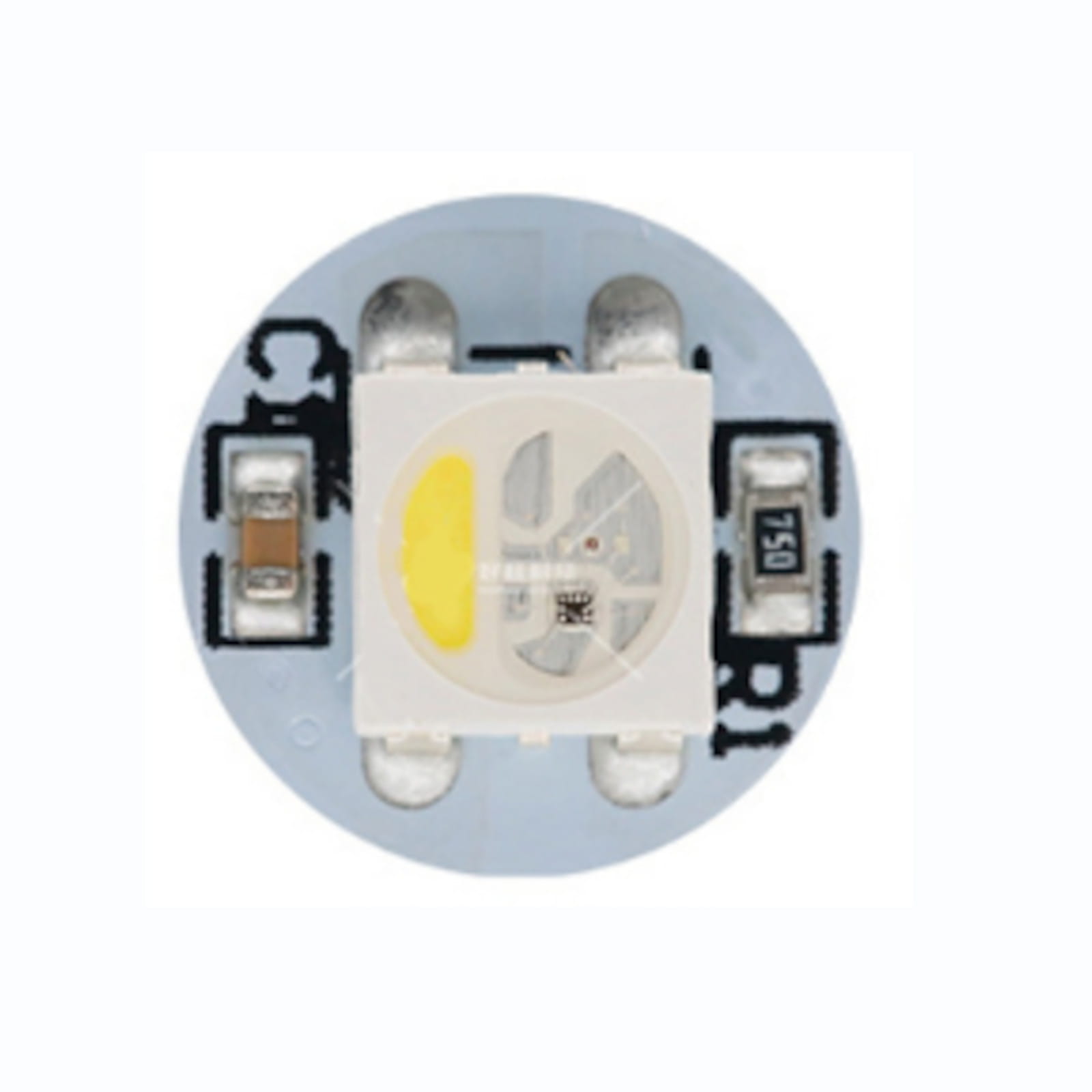

Button LED SK6812 RGBCW

Button LED RGBCW SK6812 strip 5050RGBCW chip. Natural white and color led lighting the Voron 2.4 Stealthburner toolhead and other applications

Parameters

  • Gray level: 256
  • View angle: 120°
  • FPCB Width:10.0mm
  • Input voltage: DC5V
  • Color order: G R B W (not RGBW)
  • light source: 5050 RGBW LED
  • Color: full color 32-bit (8bit each channel)
  • Power:40 mA
  • Recommend power supply: DC5V20A (10W)
  • Model: SK6812 strip 5050RGBCW chip
  • Operating Temperature:-20 ~ +50°C
  • Signal:SK6812 RGBW IC(Similar with ws2812b) SK6812 chip built-in LED
  • Wave length(nm):Red,620-630nm ; Green,515-5250nm ; Blue,460-470nm
  • Luminous flux :Red 0.5-1.0 lumens  Green: 2-3 lumens  Blue: 0.5-1.0 lumens   White: 5-7 lumens
  • Color: RGBNW=RGB+Natural White(4000K-5000K)
  • Waterproof level:IP30 Non-waterproof

A pre assembled LED SK6812 RGBCW set for the Voron Stealburner

The Voron 2.4 assembly manual can be downloaded here for reference.

Specifications

Technical Details

  • Design:

  • Dimensions:

  • Construction:

  • Material:

  • Total Thickness:

  • Weight:

  • Manufacturing: CNC Laser Cut & Hand-Assembled in Marathon, ON
