Premium Black 2040 Aluminum Extrusion – Incredible Strength T-Slot

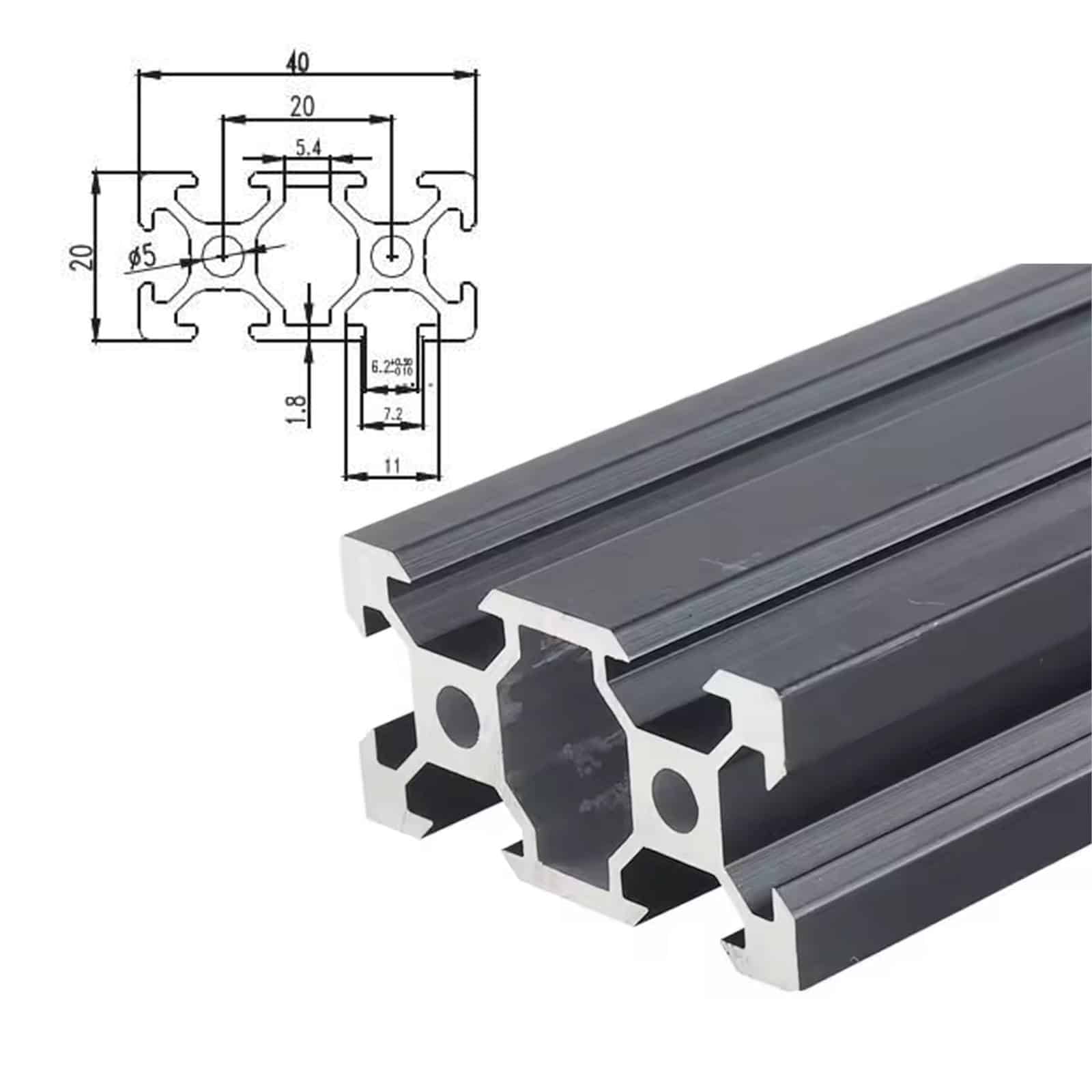

Black 2040 Aluminum Extrusion Black anodized T-slot profile

Our black 2040 aluminum extrusion is a professional-grade T-slot profile designed for maximum structural rigidity. This 20mm x 40mm modular framing solution is ideal for high-end 3D printers, CNC machine frames, and industrial workstations.

  • Sleek Anodized Finish: Deep black coating provides superior corrosion and scratch resistance.
  • Precision Cut-to-Length: Order exactly what you need in 5cm increments (Min: 25cm | Max: 150cm).
  • Modular Compatibility: Fully compatible with all 20-series T-nuts and accessories.

For bulk orders or special lengths up to 6 meters (20 feet), please contact us for a custom freight quote.

Price:

$0.29 per cm

Product Price
SKU DB-0715-7598 Categories , , Tags , , ,
Credit Car Images

Product Details

Our Black 2040 Aluminum Extrusion is the ultimate T-slot profile for builders who demand incredible structural rigidity and a sleek, professional finish. This premium 20mm x 40mm modular framing solution is a stunning choice for high-end 3D printers, CNC machine frames, and custom industrial enclosures.

Precision Engineering with Black 2040 Aluminum Extrusion

This Black 2040 Aluminum Extrusion offers a superior strength-to-weight ratio compared to standard 2020 profiles. By doubling the cross-sectional area, it provides the necessary stiffness for long-span gantries without adding excessive weight. Every piece is precision-cut from high-grade 6063-T5 Aluminum Alloy to ensure industrial reliability across Canada.

Specifications

Profile Series 20 Series (20mm x 40mm)
Material 6063-T5 Aluminum Alloy
Finish Black Anodized (Type II)
Slot Width 6.2mm (T-Slot)
Weight Approx. 0.8 kg per meter

Installation & Care

To maintain the high-quality black finish of your extrusion, please follow these professional care guidelines:

  • Cleaning: Use a soft, lint-free cloth with warm water and a mild, pH-neutral detergent. Avoid acidic or alkaline cleaners which can damage the anodized layer.
  • Tooling: When assembling, use plastic-coated or high-quality hex keys to prevent scratching the inner tracks.
  • Cutting: If you perform secondary cuts, use a carbide-tipped non-ferrous blade. Note that the cut face will expose raw aluminum; this can be touched up with a matte black paint pen if required.
  • Storage: Store rails horizontally in a dry environment to prevent surface contamination or bowing over long periods.
