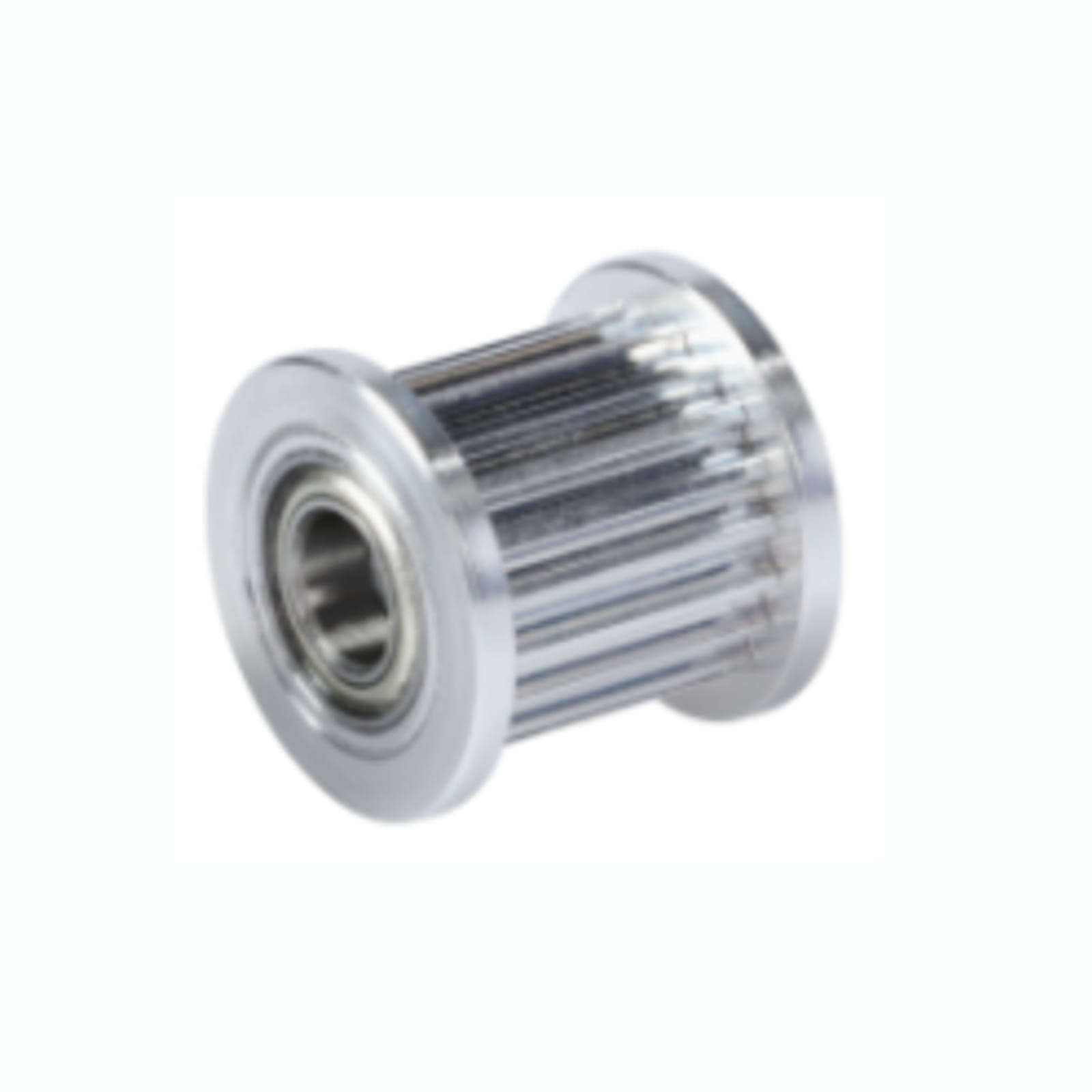

Premium 20T GT2 Idler Pulley Aluminum with a compact 14mm flange outer diameter for clean belt guidance in 3D printers, CNC machines, robotics, belt tensioners, and custom motion systems.
$13.25
The 20T GT2 Idler Pulley Aluminum is a premium belt guide pulley designed for smooth GT2 belt routing in 3D printers, CNC machines, robotics, laser engravers, plotters, belt tensioners, CoreXY motion systems, and custom mechanical assemblies. This aluminum idler pulley helps guide the belt around tensioning points, carriage paths, gantry assemblies, and belt return routes where clean tracking and smooth rotation matter.
The key advantage of this premium version is its compact 14mm flange outer diameter. Many GT2 idler pulleys in the same class use larger standard flanges, which can create clearance problems in tight printer frames, compact tensioners, and close-fitting motion assemblies. The smaller 14mm flange can make this pulley easier to fit into designs where space is limited while still helping keep the belt aligned.
The flange on an idler pulley helps guide the belt and reduce the chance of the belt walking off the pulley during motion. This premium version uses a 14mm flange outer diameter, making it a strong choice for compact belt paths, smaller brackets, tight printed parts, and machines where standard-size flanges may be too large. The reduced flange size can help improve clearance without giving up the usefulness of a guided idler pulley.
GT2 timing belts are widely used in 3D printers and light-duty motion systems because they provide accurate belt-driven movement in a compact format. A properly installed idler pulley helps the belt follow the intended path without rubbing, twisting, or wearing unevenly. This 20T GT2 Idler Pulley Aluminum is suitable for compatible GT2 belt layouts used in printer, CNC, robotics, and DIY motion systems.
The aluminum construction provides a clean, professional appearance while keeping the pulley lightweight. Aluminum pulleys are commonly used in printer and machine builds because they offer a good balance of strength, low mass, and durability. The natural aluminum finish pairs well with aluminum extrusion frames, machined brackets, silver hardware, printed parts, and custom fabricated assemblies.
This pulley can be used in CoreXY printers, Cartesian printers, Voron-style builds, RatRig-style builds, laser engravers, CNC machines, robotics projects, camera sliders, plotters, and prototype motion assemblies. It is especially helpful when building or repairing compact belt-driven systems that rely on smooth, repeatable movement and careful belt alignment.
In a belt-driven system, pulley alignment and belt tension matter. A clean idler setup can help reduce belt edge wear, noise, skipped motion, vibration, and inconsistent travel. The pulley should spin freely, sit square to the belt path, and be spaced correctly so washers, screws, brackets, or printed parts do not rub against the belt or rotating pulley.
For related parts, browse the 3D Printer Parts category or the Fasteners category. This pulley can be paired with GT2 timing belts, metric socket head screws, spacers, bearings, brackets, linear rails, guide blocks, smooth rods, and other motion hardware from dnb3D.
Timing belt pulley systems are commonly used where synchronized belt motion, repeatability, and compact mechanical drive layouts are needed. For general engineering context on synchronous timing belt systems, see this synchronous belt drive reference.
Every order is hand-inspected and precision-shipped from dnb3D in Marathon, Ontario. Whether you are upgrading a 3D printer, building a compact belt tensioner, assembling a CNC axis, or designing a custom motion system, this 20T GT2 Idler Pulley Aluminum provides a premium compact-flange belt guiding solution for GT2 motion systems.
The 20T GT2 Idler Pulley Aluminum is a premium belt guide pulley designed for GT2 timing belt motion systems. This version includes a bearing, a 5mm bore, and a compact 14mm outside diameter that matches the flange diameter for improved clearance in tight assemblies.
| Product Type | GT2 idler pulley / belt guide pulley |
|---|---|
| Tooth Profile | GT2 |
| Tooth Count | 20 tooth / 20T |
| Compatible Belt Type | GT2 timing belt |
| Compatible Belt Width | Fits up to 9mm wide GT2 timing belts |
| Bore Size | 5mm |
| Bearing Included | Yes — integrated bearing for free-spinning idler use |
| Outer Diameter | 14mm |
| Flange Outer Diameter | 14mm compact flange |
| Flange Advantage | Smaller than many standard-size flanges in the same pulley class, helping improve clearance in compact printer and machine assemblies |
| Material | Aluminum / aluminum alloy |
| Finish / Colour | Natural aluminum / silver |
| Common Use | Belt idler, belt guide, belt tensioner, belt return path, gantry routing, CoreXY motion, and compact GT2 motion assemblies |
| Compatible Hardware | 5mm shafts, M5-compatible bolts, shoulder screws, spacers, washers, brackets, printed parts, and custom pulley mounts |
| Common Applications | 3D printers, CoreXY printers, Cartesian printers, CNC machines, robotics, laser engravers, plotters, camera sliders, automation projects, and belt-driven motion systems |
| Installation Style | Mounted as a free-spinning idler or belt guide in a compatible GT2 belt path |
| Assembly Warning | Confirm belt width, 5mm bore fit, pulley alignment, bearing clearance, flange clearance, and mounting hardware before installation. Misalignment can cause belt wear, noise, rubbing, or poor motion quality. |
| Fulfillment | Hand-inspected and precision-shipped from dnb3D in Marathon, Ontario, Canada |
Before installing the 20T GT2 Idler Pulley Aluminum, confirm that your belt is a compatible GT2 timing belt and that the pulley matches your belt width, shaft size, and mounting design. Mismatched parts can cause wobble, binding, poor belt tracking, or premature belt wear.
This premium version features a compact 14mm flange outer diameter. Before final installation, confirm that the flange clears nearby brackets, printed parts, washers, panels, belt paths, and frame components. The smaller flange can help in tight layouts, but the pulley must still have enough room to spin freely.
Proper alignment is important for smooth belt motion. The pulley should sit square to the belt path so the belt tracks evenly across the pulley. Misalignment can cause belt edge wear, noise, skipped motion, uneven tension, or rubbing against nearby parts.
When mounting the pulley, make sure spacers, washers, bolts, brackets, and printed parts do not rub against the rotating pulley or belt. The pulley should spin freely after installation with no side binding, wobble, or interference.
Use reasonable belt tension for your machine design. A belt that is too loose can skip or produce inaccurate motion, while a belt that is too tight can increase bearing load, create noise, wear the belt, or strain shafts, brackets, and printed parts.
After installation, rotate the pulley by hand and move the belt through the full travel path. The pulley should spin smoothly without grinding, binding, side rubbing, or visible wobble. Correct any alignment issues before running the machine at speed.
Keep the pulley and belt path free from dust, chips, filament debris, grease buildup, and abrasive particles. Contamination can reduce belt life and create rough or noisy motion. Inspect the pulley during regular printer or machine maintenance.
To keep the natural aluminum finish clean, avoid abrasive tools, harsh cleaners, and unnecessary scratching during installation. Wipe with a soft cloth before final assembly if the pulley will be visible on the finished machine.
